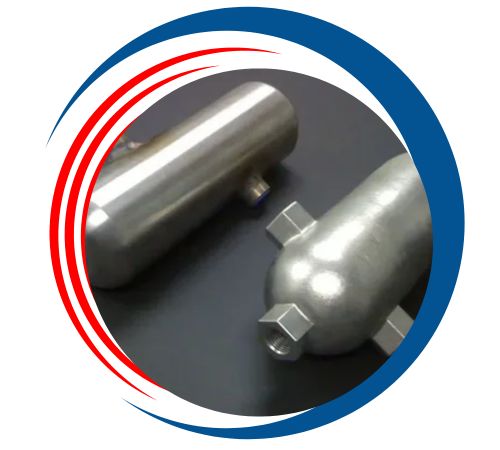

Inconel Condensate Pots

Home > Inconel > Inconel Condensate Pots

Gabriel Tube Fittings is a reputable manufacturer and supplier located in Cairo, Egypt, specializing in high-quality **Inconel Condensate Pots**. These pots are expertly designed to safeguard instrumentation systems from condensate in steam and process lines. By using these condensate pots, you can ensure precise measurements and dependable operation of pressure gauges, transmitters, and other sensitive instruments, even in high-temperature and corrosive settings. Crafted to meet stringent international standards, Gabriel Tube Fittings provides Inconel Condensate Pots that boast exceptional corrosion resistance, mechanical strength, and long-lasting durability, making them perfect for demanding industrial applications.

Inconel Type A Condensate Pot with Zinc Plating Manufacturer Cairo, Inconel Condensate Pot Type B Dealer Alexandria, Inconel Type C Condensate Pots with 4 Ports Manufacturer Supplier Giza, 600 Inconel Condensate Pots Type A Exporter In Port Said, Inconel Type B Condensate Pot with Galvanized Plating Manufacturer Cairo, Inconel Type C Condensate Pot with Red Oxide Coated In Cairo, Egypt.

Constructed from nickel-chromium-based superalloys like Inconel 600 or 625, these pots contain significant amounts of nickel and chromium, along with molybdenum and iron. This unique blend offers remarkable resistance to oxidation, pitting, and crevice corrosion, even at elevated temperatures and in harsh chemical environments. They deliver high tensile strength, impressive toughness, and consistent mechanical performance, ensuring they stand the test of time while protecting sensitive instrumentation.

Inconel Condensate Pots Specifications

Standard : DIN, ASTM, BS and all International Standards.
Number of Ports : 2 ports upto 8 ports, refer to the section below for arrangements.
Working Pressure : 6000 PSIG(41.34 MPa).
Pressure Rating : 1500 PSI, 3000 PSI, 6000 PSI, 10000 PSI.
Header Inlet : 1” Female Bsp or Npt threaded to ASME B16.1 or Flanged inlet optional.
Header Outlet/drain : None / or ¼”Male Bsp or Npt threaded to ASME B16.1 or 150# cast fitting.
Pipe size : 2″, 3″, 4″, 5”, 6” and larger size upon request.
Pipe Schedule : 40, 80, 160, XX seamless pipe.
Total Length : Pipe length 8″,10″,12″ and larger length upon request.
Thread Connections : NPT as per ANSI B1.20.1,Socket weld as per ANSI B16.11, Butt weld as per ANSI B16.9.

Inconel Condensate Pots Chemical Composition

Grade	Ni	Cr	Fe	C	Mn	S	Si	Cu
Inconel Condensate Pots	72.0 min	14.0 – 17.0	6.0 – 10.0	0.15 max	1.0 max	0.015 max	0.5 max	0.5 max

Sizing Of Inconel Condensing Pots

P NPT – F	Capacity (Internal Vol.0)cm 3±5%	Pressure Rating PSIG	T mm	L mm	B mm
1/4”	150	1800	2.05	135	50.08
1/4”	300	1800	2.05	225	50.08
1/4”	400	1800	2.05	290	50.08
1/4”	500	1800	2.05	350	50.08
1/4”	1000	1800	4.06	275	88.09
1/4”	2250	1800	5.02	435	120
1/4”	3785	1800	5.02	680	120
1/2”	1000	1800	4.06	275	88.09
1/2”	2250	1800	5.02	435	102
1/2”	3785	1800	5.02	680	102
3/4”	1000	1800	4.06	275	88.09
3/4”	2250	1800	5.02	435	102
3/4”	3785	1800	5.02	680	102

Top Inconel Condensate Pots Manufacturing Company in Cairo

At Gabriel Tube Fittings, we are the largest supplier, manufacturer, and exporter of Inconel Condensate Pots in Cairo, Egypt. Our advanced manufacturing facilities, strategically positioned in the Egypt, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfil your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.

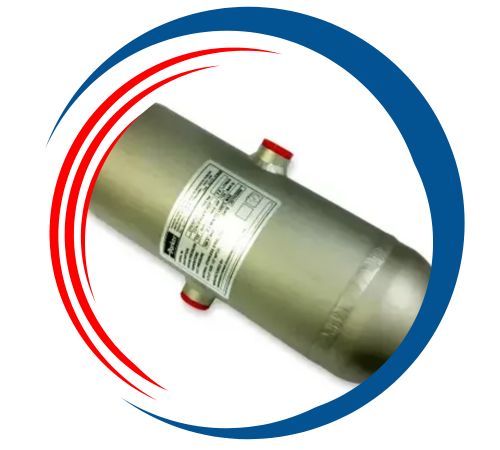

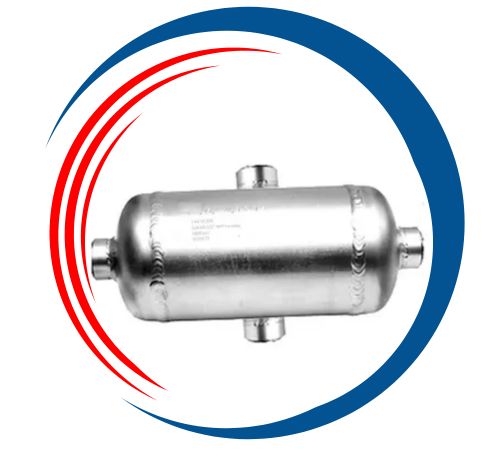

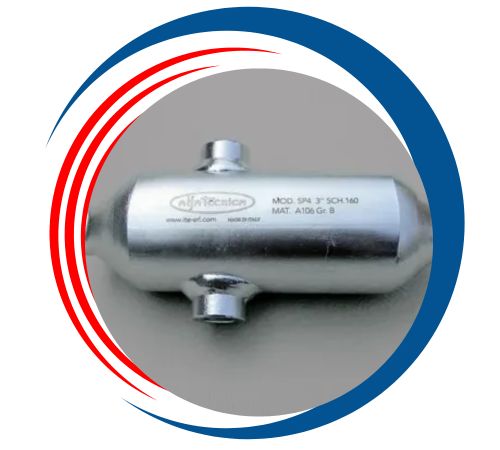

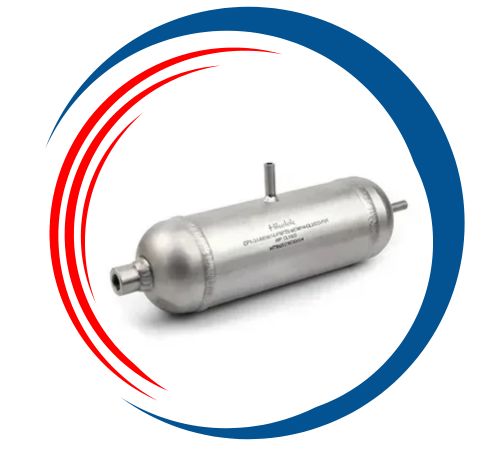

Types of Inconel Condensate Pots

Equivalent Grades of Inconel Condensate Pots

STANDARD	UNS	WERKSTOFF NR.	JIS	AFNOR	BS	GOST	EN
Inconel Condensate Pots	N06600	2.4816	NCF 600	NC15FE11M	NA 13	МНЖМц 28-2,5-1,5	NiCr15Fe

Inconel Condensate Pot Type A Price in Cairo, Inconel Type B Condensate Pot with Zinc Plating Manufacturer Supplier in Alexandria, Alloy 800 Type C Condensate Pots Manufacturer in Giza, Inconel Type A Condensate Pot with Galvanized Plating Price in Port Said, Inconel Type B Condensate Pot with Red Oxide Coated Supplier And Manufacturer in Cairo, 601 Inconel Type C Condensate Pot In Cairo, Egypt.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Inconel Condensate Pots Supplier in Cairo, Egypt

Inconel Condensate Pots find their place in various industries, including oil and gas, petrochemical, chemical processing, power generation, and marine sectors. They are particularly well-suited for steam lines, process pipelines, and instrumentation systems where effective condensate removal and corrosion protection are essential. With their superior corrosion resistance, high-temperature capabilities, and robust mechanical strength, Inconel Condensate Pots guarantee safe, efficient, and reliable operation in even the most challenging industrial environments.

Inconel Condensate Pots Uses

Inconel condensates are widely used in a variety of industrial applications due to their exceptional corrosion resistance and high temperature stability It is important in the oil and gas industry to collect sludge from pipelines and fractures , prevent obstruction and ensure smooth flow. In addition, it is used in power plants to optimize steam generation systems. Their reliability and durability make them suitable for applications that require stringent safety and performance standards, increasing overall operational efficiency.
