Stainless Steel Thermowell

Home > Stainless Steel > Stainless Steel Thermowell

Gabriel Tube Fittings is a reputable manufacturer and supplier located in Cairo, Egypt, specializing in high-quality **Stainless Steel Thermowells** that are crafted for precise and dependable temperature measurement in various industrial applications. These thermowells serve as protective barriers for temperature sensors like thermocouples and RTDs, shielding them from direct contact with process fluids, pressure, and potential mechanical harm. With a commitment to precision and compliance with international standards, Gabriel Tube Fittings guarantees exceptional performance, durability, and resistance to corrosion. Their Stainless Steel Thermowells have earned a solid reputation for reliability and are well-suited for both high-pressure and high-temperature settings across a range of industries.

SS Threaded Thermowells Manufacturer Cairo, Stainless Steel Standard Flanges Weld Thermowell Dealer Alexandria, Stainless Steel Welded Thermowell Supplier Giza, Stainless Steel Heavy-Duty Threaded Thermowell Exporter In Port Said, 316 Stainless Steel Flanges Weld Thermowell Manufacturer Cairo, 316 Stainless Steel Socket Weld Thermowell Supplier Cairo, Egypt.

Typically, Stainless Steel Thermowells are constructed from materials such as SS 304, SS 316, and SS 321, which include elements like chromium (18–20%), nickel (8–12%), and molybdenum (2–3% in 316) that contribute to their outstanding corrosion resistance and mechanical strength. These thermowells boast impressive tensile strength, ranging from 500 to 700 MPa, and maintain good toughness even at elevated temperatures. They excel in resisting oxidation, scaling, and chloride-induced corrosion, ensuring reliable performance in challenging and corrosive environments.

Stainless Steel Thermowell Specifications

Standard : DIN, ASTM, BS and all International Standards.
Process Connection Size : 1/2″, 3/4″, 1″, 1 1/2″ and 2″.
Instrument Connection : 1/2 NPSM, 1/2 NPT Female.
Shank Style : Stepped, Straight, Tapered.
U Length : 50, 65, 75, 80, 83, 100, 120, 125, 150, 175, 200, 250, 300.
Bore Size : 6,6 mm (0,260″), 9,8 mm (0,385″), 6 mm to 10 mm.
Flange Facing : Flat Face, Raised Face, Ring Joint.
Rating/Class : 150, 300, 600, 900, 1500 and 2500 class.
Thread Type : NPT, BSP.
Immersion : 2 1/2″.
Surface Finish : 16-32 RA, flange finish 125-250 RMS.
Lagging : 2″ if U-dimension is <3″ 3″ if U-dimension is >3″ Custom Lag dimensions are available.
Cap and Chain : Brass & Stainless Steel.

Top Stainless Steel Thermowell Manufacturing Company in Cairo

At Gabriel Tube Fittings, we are the largest supplier, manufacturer, and exporter of Stainless Steel Thermowell in Cairo, Egypt. Our advanced manufacturing facilities, strategically positioned in the Egypt, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfil your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.

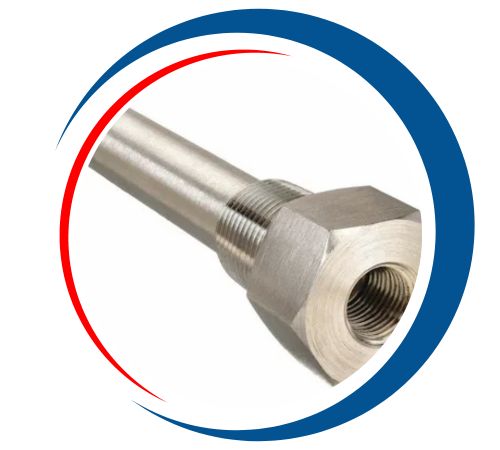

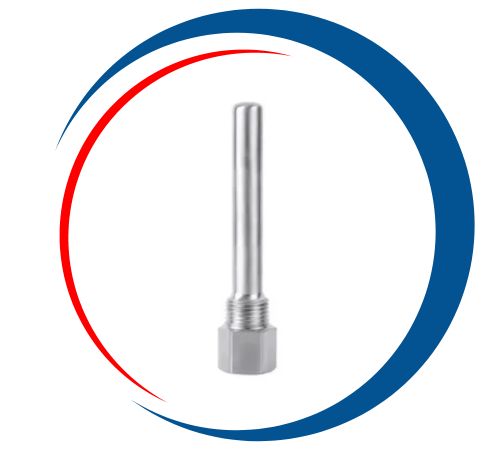

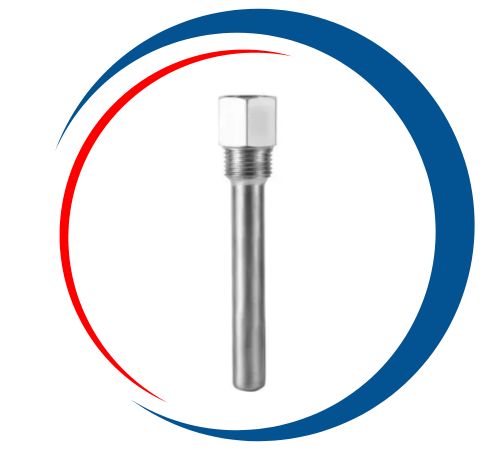

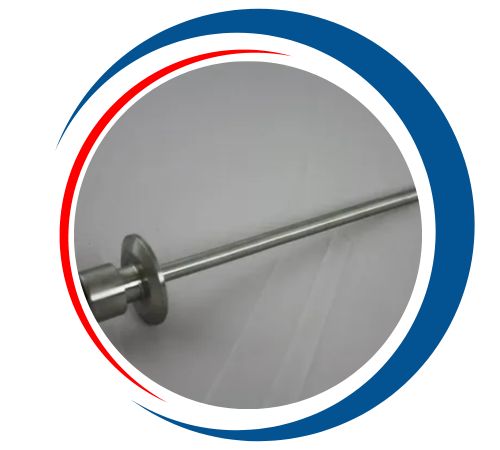

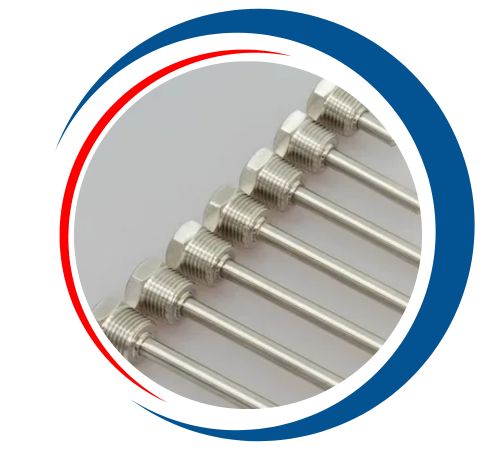

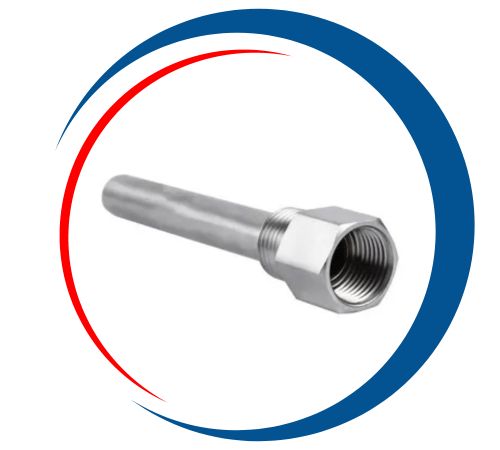

Types of Stainless Steel Thermowell

Stainless Steel Light-Duty Threaded Thermowell Price in Cairo, 304 Stainless Steel Flanges Weld Thermowells Manufacturer Supplier in Alexandria, 304 Stainless Steel Socket Weld Thermowells Manufacturer in Giza, Stainless Steel Light-Duty Threaded Thermowell Price in Port Said, Stainless Steel Flanges Weld Thermowell Supplier in Cairo, Stainless Steel Socket Weld Thermowell Dealer In Giza, 304 Stainless Steel Threaded Thermowells In Cairo, Egypt.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Stainless Steel Thermowell Supplier in Cairo, Egypt

Stainless Steel Thermowells find extensive application in sectors like oil and gas, petrochemical, chemical processing, food and beverage, and power generation. They play a crucial role in safeguarding temperature instruments within pipelines, reactors, and tanks where fluids are under pressure or flowing rapidly. By providing a safe and efficient means to monitor temperature without exposing sensors to direct contact with process media, these thermowells combine strength, corrosion resistance, and longevity, making them the go-to choice for accurate temperature control and measurement in industrial systems.

Stainless Steel Thermowell Uses

Stainless steel thermowells are widely used in various industries, including oil and gas, pharmaceuticals, food and beverage, and chemical processing. They protect temperature sensors in high-pressure and high-temperature environments, ensuring accurate measurements without direct exposure to process fluids. Common applications include monitoring temperatures in pipelines, reactors, heat exchangers, and storage tanks. Their corrosion resistance makes them suitable for harsh environments, while their durability ensures longevity. Additionally, they can be easily integrated into control systems, enhancing overall process efficiency and safety in industrial operations.
