Titanium Gr 5 Needle Valve

Home >Titanium Gr 5 Needle Valve

Gabriel Tube Fittings, located in Cairo, Egypt, has made a name for itself as a top-notch manufacturer and supplier of high-quality industrial components, including Titanium Grade 5 needle valves. These valves are crafted with precision, durability, and outstanding corrosion resistance in mind, making them perfect for controlling flow in high-performance and corrosive settings. Each valve is produced using cutting-edge technology and rigorous quality checks to guarantee leak-proof functionality, a long lifespan, and dependable performance. Catering to both local and global markets, Gabriel Tube Fittings offers effective and durable solutions tailored to meet the demands of critical industrial applications.

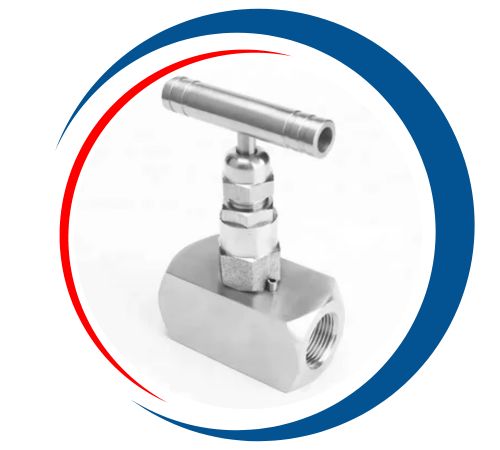

Titanium Gr 5 Gauge Bleed Needle Valves Supplier in Cairo, UNS R56400 Titanium Gr 5 Industrial Needle Valve Price List in Alexandria, Ti Alloy R56400 Needle Manufacturer in Giza, DIN 3.7165 Needle Valves in Port Said, Grade 5 Titanium Gauge Valves Exporter in Alexandria, Titanium 6Al-4V Needle Valve Manufacturer in Cairo, Titanium Alloy Grade 5 Needle Valve In Cairo, Egypt.

Titanium Grade 5 (Ti-6Al-4V) needle valves are crafted from an alloy that includes 6% aluminum and 4% vanadium, providing an impressive mix of strength, lightweight characteristics, and corrosion resistance. These valves boast high tensile strength, excellent fatigue resistance, and remarkable performance even in extreme temperatures and pressures. The fine-threaded stem and tapered needle design enable precise flow regulation, while the alloy’s inherent resistance to seawater, oxidizing acids, and chlorides ensures long-lasting durability, even in harsh environments.

Titanium Gr 5 Needle Valve Specifications

VALVE SIZE	1/8″ TO 2″ / 6 MM TO 50 MM
THREAD	NPT, BSPP, BSPT, JIC, METRIC, UNF
CONNECTION	THREADED, TUBE END, BUTT WELD, SOCKET WELD, FLANGE END
FLOW PATTERN	STRAIGHT, ANGLE, CROSS PATTERNS
FUNCTION	2 WAY, 3 WAY
BODY SHAPE	SQUARE, ROUND, HEXAGON
PRESSURE RATING	1500 PSI, 3000 PSI, 6000 PSI, 10000 PSI, 15,000 PSI, 20000 PSI
ORIFICE SIZE	2 MM TO 9.5 MM
MEDIA	HYDRAULIC OIL, AIR, WATER, GAS, STEAM, HOT WATER , COLD WATER , SEA WATER , CHEMICAL
MEDIA TEMPERATURE	(-120* C TO 500*C ) RANGE AS PER PRESSURE
BODY TYPE	BAR STOCK, FORGED
HANDLE	BAR T-HANDLE,KNOB HANDLE, WHEEL HANDLE
PACKING DETAILS	BOX PACKING, WOODEN PALLET
MATERIAL	TITANIUM GRADE 5

Titanium Gr 5 Needle Valve Chemical Composition

Grade	Ti	C	Fe	H	N	O	Al	V
Ti Grade5	90 min	–	0.25 max	–	–	0.2 max	6 min	4 min

Titanium Gr 5 Needle Valve Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Titanium Gr. 5	4.43 g/cm3	1632 °C (2970 °F)	Psi – 138000 , MPa – 950	Psi – 128000 , MPa – 880	14 %

Top Titanium Gr 5 Needle Valve Manufacturing Company in Cairo

At Gabriel Tube Fittings, we are the largest supplier, manufacturer, and exporter of Titanium Gr 5 Needle Valve in Cairo, Egypt. Our advanced manufacturing facilities, strategically positioned in the Egypt, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfill your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.

Types of Titanium Gr 5 Needle Valve

Titanium Gr 5 Needle Valve Equivalent

STANDARD	WERKSTOFF NR.	UNS
Titanium Gr. 5	3.7165	N56400

Titanium Alloy Gr 5 Hydraulic Needle Valve Price in Cairo, Ti Grade 5 Parker Needle Valve Supplier in Alexandria, Ti6Al4V Screwed End Needle Valve Manufacturer in Giza, Ti Alloy Gr. 5 Multiport Gauge Valves Price in Port Said, Titanium Gr 5 Gauge Vent Valves Supplier And Manufacturer in Cairo, Titanium Gr.5 Gauge Valve In Cairo, Egypt.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Titanium Gr 5 Needle Valve Supplier in Cairo, Egypt

You’ll find Titanium Grade 5 needle valves widely utilized across various industries, including chemical processing, marine, aerospace, offshore oil and gas, and high-purity systems. They excel at precisely controlling corrosive fluids and gases under high-pressure conditions. Their lightweight nature, high mechanical strength, and chemical inertness make them ideal for critical applications that demand accuracy and reliability. With Gabriel Tube Fittings’ Titanium Grade 5 needle valves, you can expect safe, efficient, and maintenance-free performance, even in the toughest industrial and environmental conditions.

Titanium Gr 5 Needle Valve Uses

Titanium grade 5 (Ti-6Al-4V) needle valves are widely used in applications requiring high corrosion resistance, strength, and durability under extreme conditions They are mainly used in medical, aerospace, marine, and in the oil and gas industry to control hazardous liquids and gas flow These valves are ideally suited for high pressure and severe environments due to their excellent corrosion resistance, especially in chloride-containing materials In addition, their light weight and biocompatibility make them ideal for medical applications and specialized devices.
