Monel Needle Valve

Home > Monel > Monel Needle Valve

Gabriel Tube Fittings, located in Cairo, Egypt, specializes in top-notch **Monel Needle Valves** that are crafted for precise flow control in tough, corrosive industrial settings. These valves ensure accurate regulation of fluid flow and pressure in instrumentation and process control systems, delivering leak-tight performance even in the most extreme conditions. With a strong emphasis on durability and reliability, Gabriel’s Monel needle valves are perfect for applications where safety and precision are paramount.

Monel Needle Valves Supplier in Cairo, Monel Alloy Gauge Valves Price List in Alexandria, Monel® Alloy Needle Valves Manufacturer in Giza, Monel Alloy Gauge Bleed Needle Valves in Port Said, Monel Needle Valve Exporter in Alexandria, Monel Industrial Needle Valve Manufacturer in Cairo, Monel Needle Valves In Cairo, Egypt.

Made from **Monel 400 or Monel K500**, these needle valves boast remarkable resistance to seawater, sulfuric acid, hydrofluoric acid, and other harsh chemicals. Monel alloys are known for their high tensile strength (up to 790 MPa) along with excellent corrosion resistance and toughness, making these valves suitable for both high-pressure and high-temperature scenarios. The precision-machined stem and seat allow for smooth, fine control and a dependable seal, while the robust body guarantees a long service life, even in challenging environments.

Monel Needle Valve Specifications

VALVE SIZE	1/8″ TO 2″ / 6 MM TO 50 MM
THREAD	NPT, BSPP, BSPT, JIC, METRIC, UNF
CONNECTION	THREADED, TUBE END, BUTT WELD, SOCKET WELD, FLANGE END
FLOW PATTERN	STRAIGHT, ANGLE, CROSS PATTERNS
FUNCTION	2 WAY, 3 WAY
BODY SHAPE	SQUARE, ROUND, HEXAGON
PRESSURE RATING	1500 PSI, 3000 PSI, 6000 PSI, 10000 PSI, 15,000 PSI, 20000 PSI
ORIFICE SIZE	2 MM TO 9.5 MM
MEDIA	HYDRAULIC OIL, AIR, WATER, GAS, STEAM, HOT WATER , COLD WATER , SEA WATER , CHEMICAL
MEDIA TEMPERATURE	(-120* C TO 500*C ) RANGE AS PER PRESSURE
BODY TYPE	BAR STOCK, FORGED
HANDLE	BAR T-HANDLE,KNOB HANDLE, WHEEL HANDLE
PACKING DETAILS	BOX PACKING, WOODEN PALLET
MATERIAL	MONEL 400

Top Monel Needle Valve Manufacturing Company in Cairo

Gabriel’s **Monel Needle Valves** find their place in various industries, including offshore oil and gas, chemical processing, marine, and power generation. They are ideal for instrumentation, sampling lines, chemical injection systems, and other critical control points that come into contact with corrosive fluids and aggressive media. With a range of end connections like NPT, BSP, and tube fittings, these valves meet international standards and are designed for reliable, maintenance-free operation in severe service conditions.

Types of Monel Needle Valve

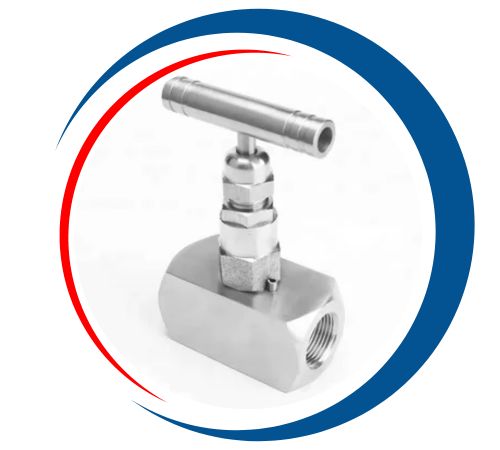

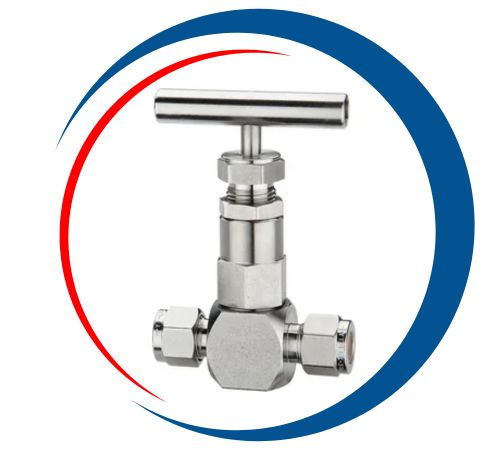

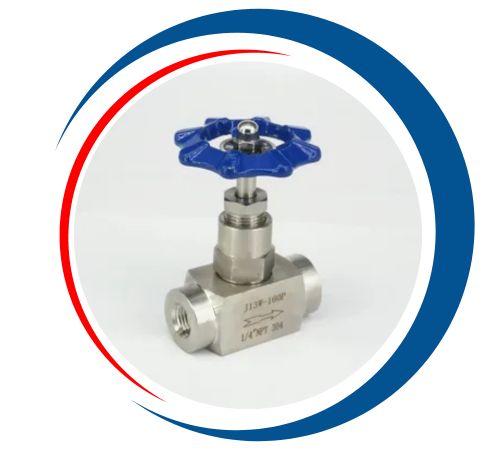

Monel Multiport Gauge Valves, Price in Cairo, Monel® Screwed End Needle Valve Supplier in Alexandria, Monel Alloy Parker Needle Valve Manufacturer in Giza, Monel® Alloy Gauge Vent Valves Price in Port Said, Monel Hydraulic Needle Valve Supplier And Manufacturer in Cairo, Monel Alloy Autoclave Needle Valve In Cairo, Egypt.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Monel Needle Valve Supplier in Cairo, Egypt

Gabriel Tube Fittings is a leading supplier and stockist of premium Monel Needle Valve in Cairo, Egypt. Our products are widely utilized across various industries, and we are committed to delivering exceptional service and ensuring high customer satisfaction. Our distinctive finishing techniques set us apart in the fittings industry. We are dedicated to consistently providing top-quality products while effectively addressing the needs of our customers.

Monel Needle Valve Uses

Monel needle valves are used in applications requiring good corrosion resistance and high stability, especially in marine and chemical environments Flow is accurately controlled and controlled in systems for acid, alkali and salt water around. Monel’s resistance to seawater, corrosion and sulfuric acid makes this valve ideal for offshore platforms, ships and medical plants plus they are used in hot environments a high, petrochemical industries and nuclear power plant stable under extreme conditions, leak proof, long it is necessary to use standing valves
