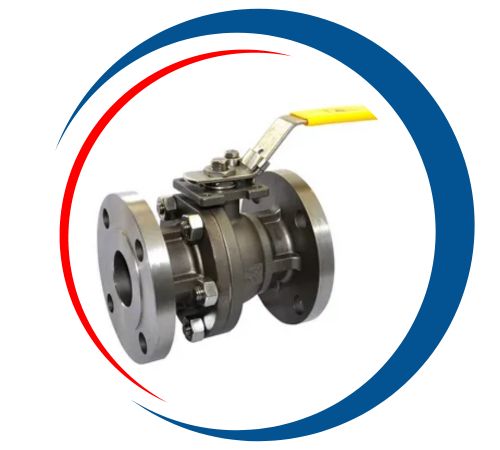

904l Ball Valve

Home > 904l Ball Valve

Gabriel Tube Fittings, located in Cairo, Egypt, has built a solid reputation as a reliable manufacturer and supplier of high-performance fluid control components, including their standout product, the 3000 PSI Needle Valve. With a strong focus on quality, precision engineering, and customer satisfaction, they cater to a diverse array of industries such as oil and gas, petrochemical, and industrial processing. The 3000 PSI Needle Valve is expertly designed to provide precise flow control even under high-pressure conditions, making it a vital part of critical systems. With a team of technical experts and dependable support, Gabriel Tube Fittings guarantees durability, efficiency, and top-notch performance in every product they deliver.

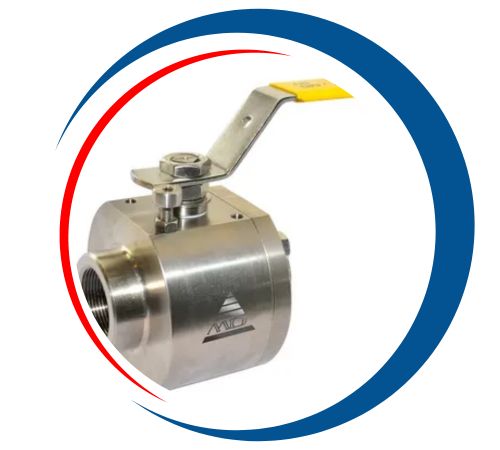

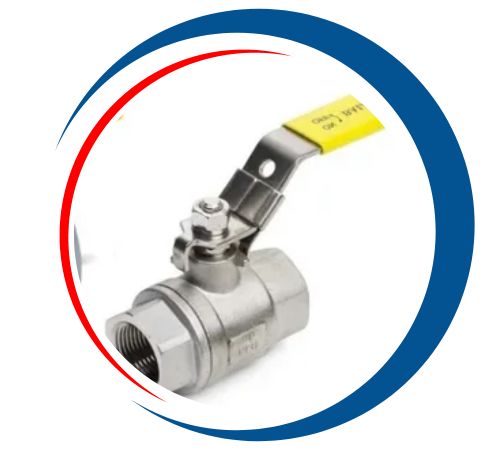

904l Ball Valve Manufacturer In Cairo, SS 904l Ball Valve In Alexandria, AISI 904L Ball Valve Giza, UNS N08904 Ball Valve In Port Said. 1.4539 AISI 904L Ball Valve In Jebel Ail, Stainless Steel 904L Ball Valve Supplier In Cairo, Egypt.

904L ball valves are made from a high-alloy stainless steel containing 20% nickel, 25% chromium, and 4.5% molybdenum, along with other elements like copper and nitrogen. These valves exhibit excellent mechanical properties, including high tensile strength (up to 570 MPa) and good ductility. The main advantages of 904L ball valves include exceptional resistance to pitting and crevice corrosion, making them ideal for corrosive environments, such as chemical processing and seawater applications. Their robust design ensures reliable performance, low maintenance, and a long service life in demanding conditions.

904l Ball Valve Specifications

STANDARD	API 600/BS1414, API 598/BS EN 12266-1, ASME B 16.10, ASME B 16.5, ASME B 16.25, ASME B 16.34
VALVE SIZE	1/8″ TO 2″ / 6 MM TO 50 MM
THREAD	NPT, BSPP, BSPT, JIC, METRIC, UNF
CONNECTION	THREADED, TUBE END, BUTT WELD, SOCKET WELD, WELD NIPPLE, FLANGED, SAE
FUNCTION	2 WAY, 3 WAY, 4 WAY, 5 WAY,
PRESSURE RATING	1500 PSI, 3000 PSI, 6000 PSI, 10000 PSI, 15000 PSI, 20000 PSI
SEAL RING MATERIAL	PTFE, PVDF, DELRIN, PEEK, GRAPHITE
STANDARD	ISO , DIN , ANSI , API , ASME , AWWA , MSS ,
MEDIA	HYDRAULIC OIL, AIR, WATER, GAS, STEAM, HOT WATER , COLD WATER , SEA WATER , CHEMICAL
MEDIA TEMPERATURE	(-120* C TO 500*C )RANGE AS PER PRESSURE
BODY TYPE	BAR STOCK
BRAND NAME	TU-LOK
PACKING DETAILS	BOX PACKING, WOODEN PALLET
EQUIVALENT BRANDS	SWAGELOK, PARKER, DK-LOK, HAMLET, OLIVER VALVES, HOKE
APPLICATION	MATERIAL HANDLING EQUIPMENT, EARTH MOVING MACHINERIES , POWER GENERATING PLANT , STEEL MANUFACTURING PLANT , MINING INDUSTRIES , CHEMICAL PROCESSING MACHINES , PIPING LINE , PAINT INDUSTRIES , TRUCKS AND TRAILERS , AUTOMATION , AGRICULTURE MACHINES , AEROSPACE & DEFENCE EQUIPMENTS,

Mechanical Properties Of AISI 904L Ball Valve

Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Hardness Rockwell B (HR B)	Hardness Brinell (HB)
490	220	36	70-90 typical	150

Chemical Composition Standard Of 904L UNS N08904 Ball Valve

C	Mn	Si	P	S	Cr	Mo	Ni	Cu
0.02 Max	2.0 Max	1.0 Max	0.045 Max	0.035 Max	19.0 Min 23.0 Max	4.0 Min 5.0 Max	23.0 Min 28.0 Max	1.0 Min 2.0 Max

Top 904l Ball Valve Manufacturing Company in Cairo

When it comes to the 3000 PSI Needle Valve, Gabriel Tube Fittings typically uses corrosion-resistant stainless steel grades like SS 316 or SS 304, ensuring it stands the test of time in tough environments. The valve boasts a sturdy body, a precision-threaded stem, and leak-tight seating for secure flow control. It offers impressive tensile strength, can handle pressures up to 3000 PSI, and exhibits high fatigue performance. The mechanical properties of the material include a tensile strength of about 515 MPa and a yield strength of around 205 MPa, along with good hardness and elongation to endure thermal and mechanical stress.

Types of 904l Ball Valve

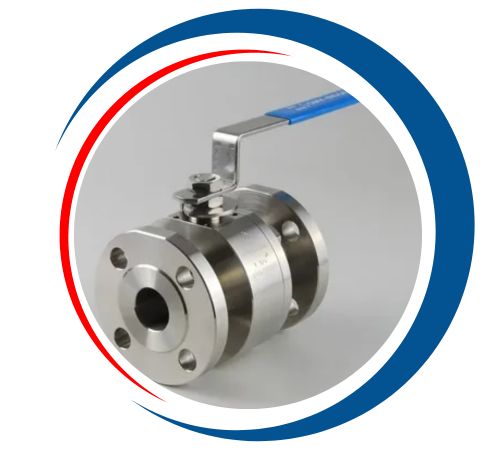

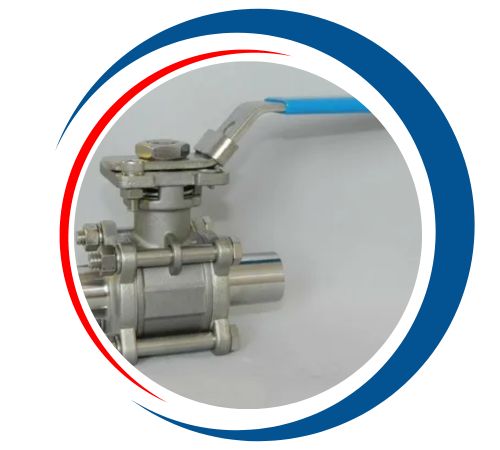

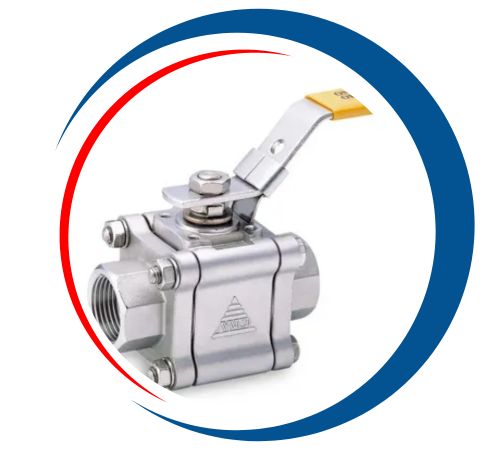

904l High Pressure Ball Valve Manufacturer In Cairo, 904l Instruemntation Ball Valve In Alexandria, 904l Panel Mounted Ball Valve Giza, AISI 904L Ball Valve Port Said. 904L UNS N08904 Ball Valve Jebel Ail, 1.4539 AISI 904L Ball Valve Supplier In Cairo, Egypt.

Largest Manufacturer and Supplier of 904l Ball Valve in Cairo, Egypt

The 3000 PSI Needle Valve from Gabriel Tube Fittings is a go-to choice for applications that require precise flow regulation in high-pressure settings. It’s commonly found in industries like oil and gas, chemical processing, power generation, and laboratory instrumentation. This valve is perfect for isolating or throttling fluids and gases, especially in instrumentation lines, hydraulic systems, and testing equipment. Thanks to its fine-threaded stem design, it allows for gradual flow adjustments, which is essential for keeping systems stable. Its robust construction ensures reliability even in extreme conditions, making it a top pick for engineers and system designers who prioritize safety, precision, and durability in critical applications.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

904l Ball Valve Uses

904L ball valves are widely used in various industries due to their excellent corrosion resistance and durability. Common applications include chemical processing, oil and gas, pharmaceutical manufacturing, and marine environments, where exposure to harsh conditions is prevalent. These valves effectively control the flow of aggressive media, such as acids and chlorides, ensuring safe and efficient operations. Additionally, 904L ball valves are suitable for high-pressure and high-temperature applications, making them ideal for power generation and water treatment facilities, where reliability and performance are crucial.
