Monel 400 Needle Valve

Home >Monel >Monel 400 Needle Valve

Gabriel Tube Fittings is a leading manufacturing and supply chain based in Cairo, Egypt, specializing in high-tech fittings and valves. With a focus on durability and accuracy, Gabriel Tube Fittings offers a range of solutions tailored to the needs of various industries. Their product offerings include the Monel 400 Needle Valve, known for its exceptional corrosion resistance in marine and chemical environments This valve ensures reliable water flow up at high pressures, making it ideal for demanding applications.

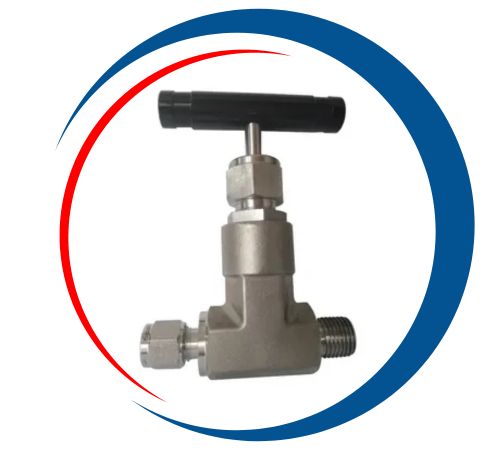

Monel 400 Bleed Needle Valves Supplier in Cairo, UNS N04400 Needle Valve Price List in Alexandria, Alloy 400 Industrial Needle Valve Manufacturer in Giza, Monel 400 Gauge Valves in Port Said, DIN 2.4360 Needle & Gauge Valves Exporter in Alexandria, Monel 400 Screwed End Needle Valve Manufacturer in Cairo, Monel 400 Hydraulic Needle Valve In Cairo, Egypt.

**Gabriel Tube Fittings**, located in Cairo, Egypt, specializes in manufacturing and supplying top-notch **Monel 400 Needle Valves** designed for precise flow control in highly corrosive and challenging environments. These valves are crafted for the accurate regulation of fluid or gas flow, making them ideal for critical applications in chemical processing, marine, offshore, and high-pressure instrumentation systems. Gabriel’s Monel 400 needle valves are engineered to deliver leak-tight performance, smooth operation, and a long service life, even under extreme conditions.

Monel 400 Needle Valve Specifications

VALVE SIZE	1/8″ TO 2″ / 6 MM TO 50 MM
THREAD	NPT, BSPP, BSPT, JIC, METRIC, UNF
CONNECTION	THREADED, TUBE END, BUTT WELD, SOCKET WELD, FLANGE END
FLOW PATTERN	STRAIGHT, ANGLE, CROSS PATTERNS
FUNCTION	2 WAY, 3 WAY
BODY SHAPE	SQUARE, ROUND, HEXAGON
PRESSURE RATING	1500 PSI, 3000 PSI, 6000 PSI, 10000 PSI, 15,000 PSI, 20000 PSI
ORIFICE SIZE	2 MM TO 9.5 MM
MEDIA	HYDRAULIC OIL, AIR, WATER, GAS, STEAM, HOT WATER , COLD WATER , SEA WATER , CHEMICAL
MEDIA TEMPERATURE	(-120* C TO 500*C ) RANGE AS PER PRESSURE
BODY TYPE	BAR STOCK, FORGED
HANDLE	BAR T-HANDLE,KNOB HANDLE, WHEEL HANDLE
PACKING DETAILS	BOX PACKING, WOODEN PALLET
EQUIVALENT BRANDS	SWAGELOK, PARKER, DK-LOK, HAMLET, OLIVER VALVES, HOKE
MATERIAL	MONEL 400

Monel 400 Needle Valve Chemical Composition

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr
Monel 400	0.30 max	2.00 max	0.50 max	0.24max	28.0-34.0	2.50 max	63.00 min	–

Monel 400 Needle Valve Mechanical Properties

Element	Yield Strength (0.2%Offset)	Melting Point	Density	Elongation	Tensile Strength
Monel 400	Psi – 35,000 , MPa – 240	1350 °C (2460 °F)	8.8 g/cm3	40 %	Psi – 80,000 , MPa – 550

Top Monel 400 Needle Valve Manufacturing Company in Cairo

**Monel 400** is a nickel-copper alloy (approximately 67% Ni and 30% Cu) celebrated for its exceptional corrosion resistance, especially in seawater, hydrofluoric acid, alkalis, and sulfuric acid environments. It boasts impressive mechanical strength and toughness across a wide temperature range, along with good weldability and resistance to stress corrosion cracking. These characteristics make Monel 400 a dependable choice for needle valves operating in aggressive media and corrosive settings.

Types of Monel 400 Needle Valve

Monel 400 Needle Valve Equivalent

STANDARD

WNR Material Number

UNS

JIS

GOST

AFNOR

Monel 400

2.4360

N04400

NW 4400

NA 13

МНЖМц 28-2,5-1,5

NU-30M

NiCu30Fe

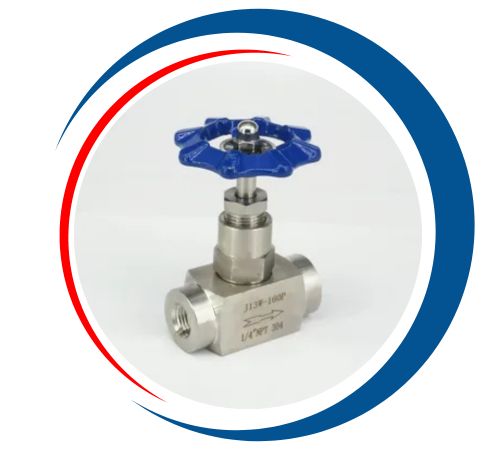

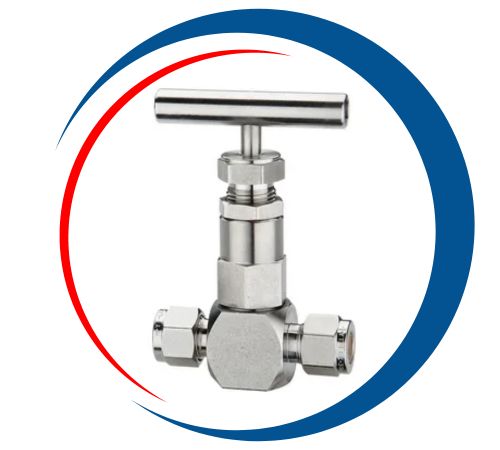

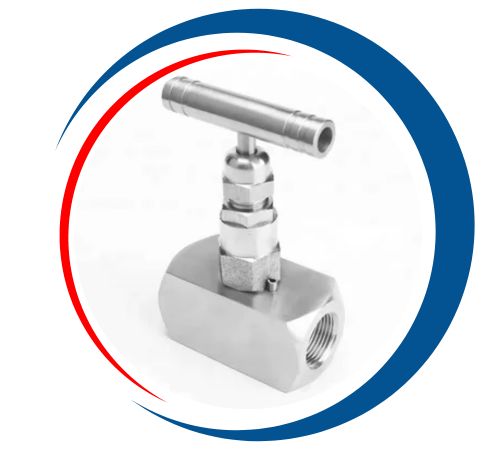

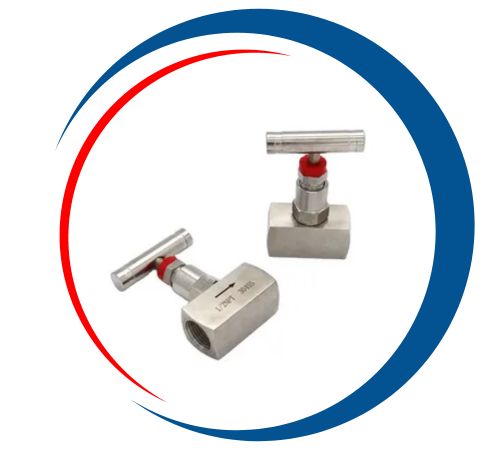

Monel 400 Screwed End Needle Valve Price in Cairo, UNS N04400 Monel 400 Hydraulic Needle Valve Supplier in Alexandria, DIN 2.4360 400 Monel Parker Needle Valve Manufacturer in Giza, Monel 400 Gauge Vent Valves Price in Port Said, Monel Alloy 400 Multiport Gauge Valves Supplier And Manufacturer in Cairo, Monel 400 Gauge Valve In Cairo, Egypt.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Monel 400 Needle Valve Supplier in Cairo, Egypt

**Monel 400 Needle Valves** find extensive use in offshore platforms, chemical plants, desalination units, refineries, and shipbuilding applications. They play a crucial role in instrumentation lines, allowing for precise control of pressure, flow, and sampling processes. With precision-threaded stems, tight shut-off capabilities, and options for panel mounting or inline installation, Gabriel’s needle valves ensure maximum control and reliability, even in high-vibration or high-pressure environments. These valves come in a variety of sizes, pressure ratings, and end connections (NPT, BSP, tube fittings) to meet a wide range of industrial requirements.

Monel 400 Needle Valve Uses

Monel 400 needle valves are used in a variety of industries due to their excellent corrosion resistance, especially in marine environments, chemical processing, and oil and gas industries. The Monel 400’s resistance to sea water, acids and alkali makes needle valves suitable for harsh conditions, including offshore, marine and subsea applications They are commonly used in heat exchangers, pumps and power demanding equipment systems size and strength distribution.
