Monel Syphon & Snubber

Home > Monel > Monel Syphon & Snubber

**Gabriel Tube Fittings**, located in Cairo, Egypt, stands out as a premier manufacturer and supplier of top-notch **Monel Syphons and Snubbers**. These products are specifically crafted to protect pressure instruments and boost system reliability in tough industrial settings. They’re designed to shield sensitive pressure gauges, transmitters, and switches from unexpected pressure surges, temperature spikes, and corrosive substances, ensuring precise measurements and extending the lifespan of your instruments.

Alloy 400 Coil Type Syphons Manufacturer Cairo, UNS N04400 Pig Tail Type Syphons Dealer Alexandria, UNS N05500 U Type Syphons Dealers Supplier Giza, Monel Coil Syphon Manufacturer Exporter In Port Said, Monel Pig Tail Type Syphon Dealer In Cairo, Monel U Type Gauge Syphon Exporter In Cairo, Egypt.

Monel syphons and snubbers are primarily composed of nickel (65-70%) and copper (30-35%), with small amounts of iron, manganese, and silicon. These components provide excellent corrosion resistance, particularly in acidic and alkaline environments. Mechanically, Monel exhibits high strength, good ductility, and exceptional thermal stability, with tensile strength exceeding 100,000 psi. The advantages of Monel syphons and snubbers include resistance to pitting and stress corrosion cracking, longevity in extreme conditions, and minimal maintenance requirements, making them ideal for various applications in the chemical, oil, and marine industries.

Monel Syphon & Snubber Specifications

- – Syphon
- Standard : DIN, ASTM, BS and all International Standards.
- Size : 1/4” to 1”.
- Schedule : sch. 40, 80, 160.
- End connection : Plain,Threaded & Socket Weld.
- Testing : Syphons are tested at 150 PSI Pneumatically.
- Maximum Operating Pressure : -1/4” NPT, schedule 40 welded is suitable for 175 psi at 340OF (171OC).
  -1/4”or 1/2” NPT, schedule 40, any seamless material is good for a working pressure of 500 psi at 680OF (360OC).
  -1/4” or 1/2” NPT, schedule 80, any seamless material is good for a working pressure of 1650 psi at 630OF (332OC).
  -1/2” NPT, double extra schedule, any seamless material is good for a working pressure of 3200 psi at 1100OF (548OC).

– Snubber
Size (in or mm) : 1/4″, 3/8″, 1/2″.
Pressure Connection : G 1/2 x G 1/2 B per EN 837-1/7.3.
Operating Temperature : -320OF to 1,500OF (-195OC to 815OC).
Burst Pressure : 60,000 psi (413,700 kPa).
Max Temperature : 120 Degree C.
Nominal Pressures : Up to 400 Bar.
Testing : Valves are tested at 3000 PSI Hydraulically & 150 PSI Pneumatically.
Degreased for oxygen service : maximum 725 psi at 60°C.

Top Monel Syphon & Snubber Manufacturing Company in Cairo

Constructed from **Monel 400**, a strong nickel-copper alloy renowned for its outstanding resistance to seawater, acids, alkalis, and other corrosive chemicals, these syphons and snubbers provide remarkable mechanical strength and durability. Monel’s exceptional corrosion resistance makes it the go-to choice for offshore, chemical processing, marine, and petrochemical industries, where challenging conditions are the norm.

Types of Monel Syphon & Snubber

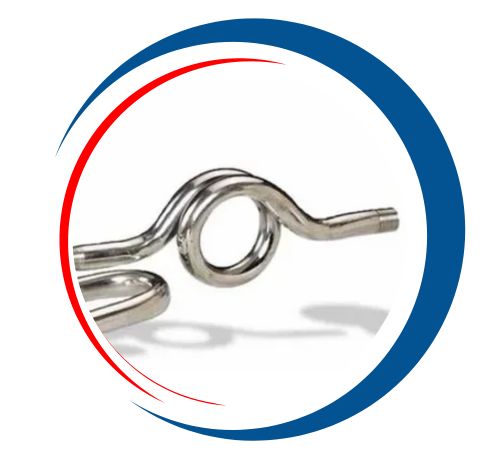

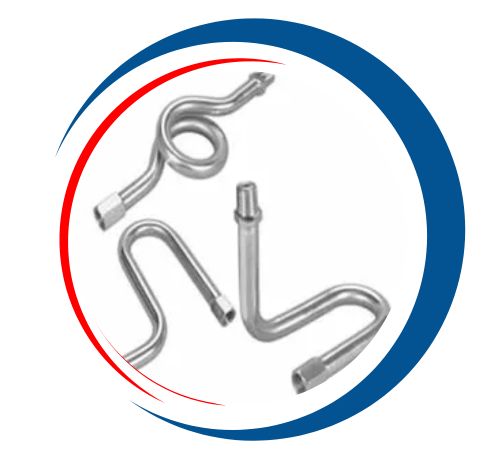

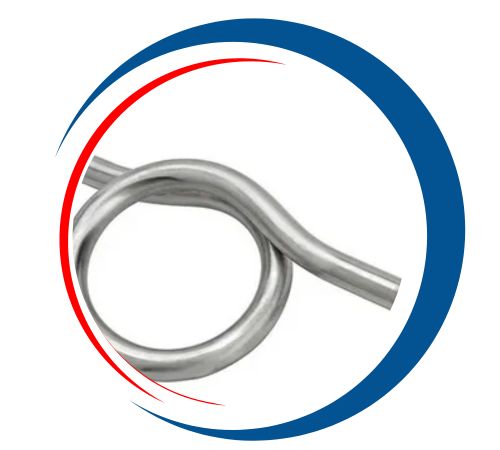

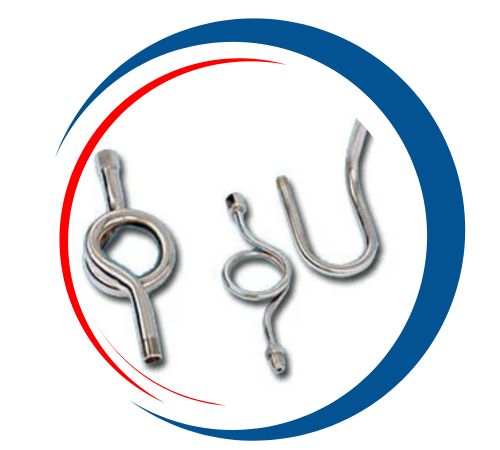

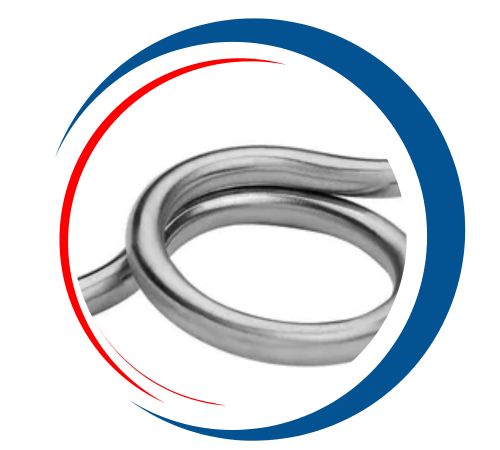

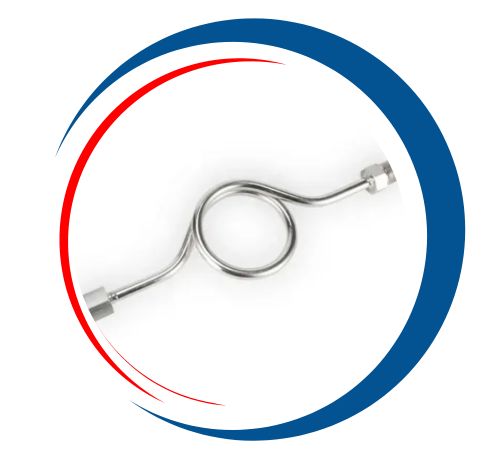

400 Monel Porous Snubber Price in Cairo, 400 Monel Piston Snubber Manufacturer Supplier in Alexandria, Monel Adjustable Snubber Manufacturer in Giza, Monel Piston Type Pulsation Snubbers Price in Port Said, Alloy 400 Adjustable Snubber Pressure Instrument Supplier And Manufacturer in Cairo, UNS N04400 Porous Snubber Pressure Instrument In Cairo, Egypt.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Monel Syphon & Snubber Supplier in Cairo, Egypt

**Monel Syphons** function as protective loops filled with liquid (typically water or oil) to isolate instruments from hot media and pressure spikes, preventing damage and ensuring stable readings. Meanwhile, **Monel Snubbers** serve as dampeners, minimizing the effects of rapid pressure fluctuations and pulsations within the system. Both components come with a variety of connection types, including NPT, BSP, or flanged ends, making it easy to integrate them into your existing piping and instrumentation setups.

Monel Syphon & Snubber Uses

Monel syphons and snubbers are widely used in various industries due to their excellent corrosion resistance and durability. They are commonly employed in chemical processing plants to transfer fluids and gases, particularly in harsh environments involving acidic or caustic substances. In the oil and gas sector, these components help regulate pressure and protect instruments from pressure spikes. Additionally, Monel syphons and snubbers are utilized in marine applications, power generation, and heat exchangers, ensuring reliable performance and longevity in extreme conditions. Their robustness makes them essential for maintaining system integrity in critical applications.
