Gabriel Tube Fittings, located in Cairo, Egypt, has built a solid reputation as a reliable manufacturer and supplier of high-performance fluid control components, including their standout product, the 3000 PSI Needle Valve. With a strong focus on quality, precision engineering, and customer satisfaction, they cater to a diverse array of industries such as oil & gas, petrochemical, and industrial processing. The 3000 PSI Needle Valve is expertly designed to provide precise flow control even under high-pressure conditions, making it a vital part of critical systems. With a team of technical experts and dependable support, Gabriel Tube Fittings guarantees durability, efficiency, and top-notch performance in every product they deliver.

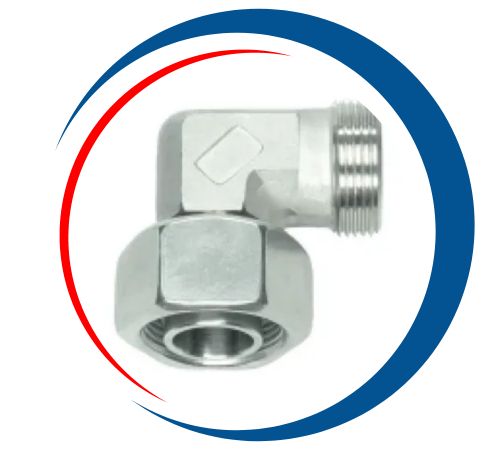

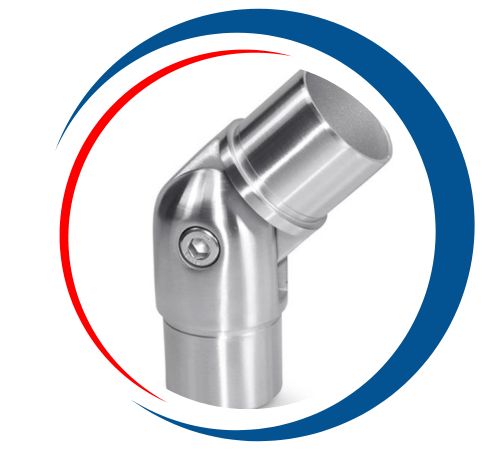

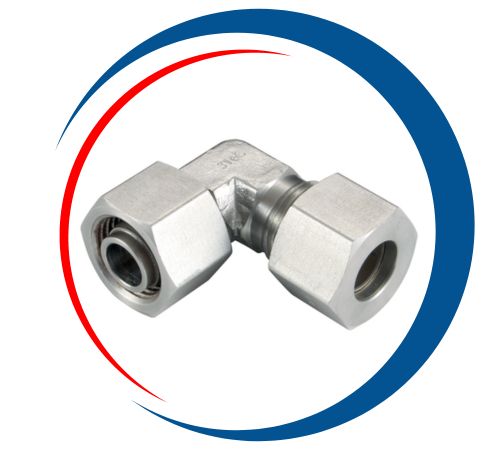

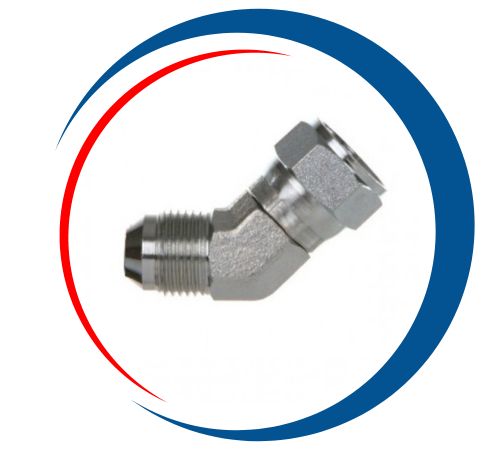

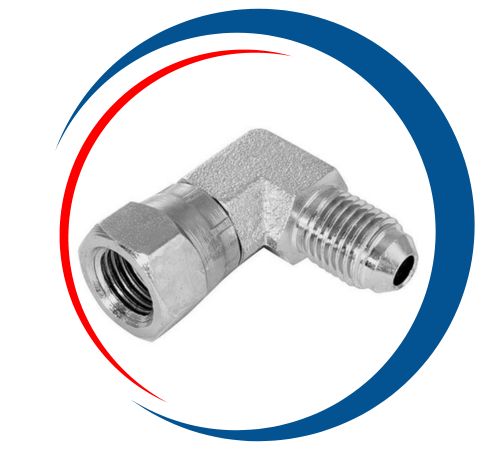

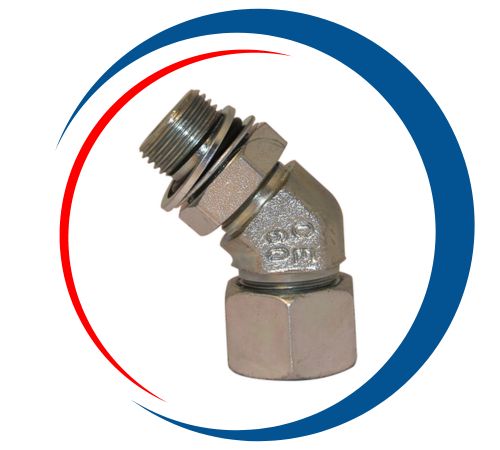

45 Degree Hydraulic Adjustable Elbow Supplier in Cairo, 45 Degree Swivel Elbow Price List in Alexandria, C.s Adjustable Elbow Stand Pipe Manufacturer in Giza, Din Swivel Elbow In Port Said, Male Jic X Female Swivel Elbow Exporter in Alexandria, Ss Swivel Adjustable Elbow Manufacturer in Cairo, Cs Swive Elbow In Cairo, Egypt.

An adjustable locknut cohn, usually made of materials such as brass or stainless steel, used in piping systems has an angle of 90 degrees Includes copper, zinc (brass), or steel, chromium, and nickel (for stainless steel). Technical features include high tensile strength, corrosion resistance and durability. It allows for secure communication with the ability to easily change faces, and provides configuration flexibility. The locknut ensures a tight fit, preventing leaks. The main advantages are ease of adaptation to high-pressure and low-pressure systems, reusability, and reliability.

Adjustable Locknut Elbow Specifications

STANDARD	DIN 2353/ ISO 8434-1
MATERIAL	MS, CS, SS 304, SS 304L, SS 316, SS 316L, SS 316TI ( 1.4571), BRASS, COPPER, DUPLEX, SUPER DUPLEX, INCONEL, MONEL, HASTELLOY, 904L, 6MO, TITANIUM, ALUMINUM, ALLOY 20
MATERIAL
SERIES	LL- LOW PRESSURE, L- MEDIUM PRESSURE, S- HIGH PRESSURE
WORKING PRESSURE	(LOW) LL SERIES – 100 BAR
	(MEDIUM)L SERIES – 100 BAR TO 500 BAR
	(HEAVY)S SERIES – 200 BAR TO 800 BAR
SIZE RANGE	LL SERIES – 4LL TO 12LL
	L SERIES – 6L TO 42L
	S SERIES – 6S TO 38S
BODY TYPE	FORGED, BAR STOCK
ACCESSORIES	O-RING, DOWTY SEAL, COPPER WASHER, ED SEAL, CUTTING RING, NUT
O-RING & SEALS	NBR ( -35C TO 100 C ) VITON (-25C TO 200 C) , PTFE – (-60C TO 240)
SURFACE	CARBON STEEL -TRIVALENT ZINC PLATED, YELLOW PLATTING, BLACK PHOSPHATE,
SURFACE	STAINLESS STEEL – EXPORT BRIGHT FINISH, SHORT BLASTED FINISH, ELECTROPLATED FINISH
TEMPERATURE	STEEL – (-40* C TO 120C) ,STAINLESS STEEL – (-60C TO 400C) BRASS – (-60C TO 175*C)

Top Adjustable Locknut Elbow Manufacturing Company in Cairo

When it comes to the 3000 PSI Needle Valve, Gabriel Tube Fittings typically uses corrosion-resistant stainless steel grades like SS 316 or SS 304, ensuring it stands the test of time in tough environments. This valve boasts a sturdy body, a precision-threaded stem, and leak-tight seating for secure flow control. It offers impressive tensile strength, can handle pressures up to 3000 PSI, and shows excellent fatigue performance. The mechanical properties of the material include a tensile strength of about 515 MPa and a yield strength of around 205 MPa, along with good hardness and elongation to endure thermal and mechanical stress.

Types of Adjustable Locknut Elbow

Adjustable Locknut Elbow Technical Data

Series	Tube ?D1	F1	F	L	A	L1	P
L	6	14	12	27	12	26	M 12 x 1.5
light	8	17	12	29	14	27.5	M 14 x 1.5
PN 315	10	19	14	30	15	29	M 16 x 1.5
	12	22	17	32	17	29.5	M 18 x 1.5
	15	27	19	36	21	32.5	M 22 x 1.5
	18	32	24	40	23.5	35.5	M 26 x 1.5
PN 160	22	36	27	44	27.5	38.5	M 30 x 2
	28	41	36	47	30.5	41.5	M 36 x 2
	35	50	41	56	34.5	51	M 45 x 2
	42	60	50	63	40	56	M 52 x 2
S	6	17	12	31	16	27	M 14 x 1.5
heavy	8	19	14	32	17	27.5	M 16 x 1.5
PN 630	10	22	17	34	17.5	30	M 18 x 1.5
	12	24	17	38	21.5	31	M 20 x 1,5
	14	27	19	40	22	35	M 22 x 1.5
PN 400	16	30	24	43	24.5	36.5	M 24 x 1.5
	20	36	27	48	26.5	44.5	M 30 x 2
	25	36	36	54	30	50	M 36 x 2
	30	50	41	62	35.5	55	M 42 x 2
PN 315	38	60	50	72	41	63	M 52 x 2

45 Degree Hydraulic Adjustable Elbow Exporter in Cairo, C.s Adjustable Elbow Stand Pipe Price List in Alexandria, 45 Degree Swivel Elbow Manufacturer in Giza, Din Swivel Elbow In Port Said, Male Jic X Female Swivel Elbow Supplier in Alexandria, Ss Swivel Adjustable Elbow Manufacturer in Cairo, Cs Swive Elbow In Cairo, Egypt.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Adjustable Locknut Elbow Supplier in Cairo, Egypt

The 3000 PSI Needle Valve from Gabriel Tube Fittings is a go-to choice for applications that require precise flow regulation in high-pressure settings. It’s commonly found in industries like oil and gas, chemical processing, power generation, and laboratory instrumentation. This valve is perfect for isolating or throttling fluids and gases, especially in instrumentation lines, hydraulic systems, and testing equipment. Thanks to its fine-threaded stem design, it allows for gradual flow adjustments, which is essential for keeping systems stable. Its rugged build ensures reliability even in extreme conditions, making it a top pick for engineers and system designers who prioritize safety, precision, and durability in critical applications.

Adjustable Locknut Elbow Uses

Adjustable locknut elbows are commonly used in electrical circuit systems to connect the conduit at different angles while maintaining a secure, adjustable connection and are particularly useful in tight or awkward standard locations rigid fittings cannot allow for changes in direction. The locknut keeps the elbow securely in place and prevents it from loosening due to vibration or movement. These fittings are used in industrial, commercial and residential wiring systems to provide flexibility during installation while ensuring continuous ground clearance and protecting the wiring from damage
