Hydraulic Equal Tee

Home > Hydraulic Equal Tee

Gabriel Tube Fittings, located in Cairo, Egypt, has earned a solid reputation as a reliable manufacturer and supplier of top-notch industrial components, including hydraulic equal tees. Renowned for their precision, durability, and dependable performance, Gabriel’s hydraulic equal tees are expertly crafted to create uniform branch connections in hydraulic piping and tubing systems. Built to meet international standards, these fittings promise robust construction, straightforward installation, and long-lasting service. Catering to both local and global markets, Gabriel Tube Fittings provides trustworthy solutions tailored to meet the demands of various hydraulic applications.

Hydraulic Equal Tee Supplier in Cairo, CS Hydraulic Equal Tee Manufacturer in Alexandria, Egypt, DIN 2353 Hydraulic Tee Exporter in Port Said, Hydraulic Equal Tee Assembled & Un Assembled Supplier in Cairo, CS Hydraulic Equal Tee Exporter in Giza, DIN 2353 Hydraulic Tee Manufacturer in Alexandria, Egypt, Hydraulic Equal Tee Manufacturer in Port Said

Typically, hydraulic equal tees are crafted from materials like stainless steel, carbon steel, or brass, chosen for their outstanding corrosion resistance and mechanical strength. These fittings come with three ports of equal size, allowing for an even distribution or combination of fluid flow within the hydraulic system. Their mechanical properties boast high tensile strength, pressure resistance, and vibration tolerance, ensuring reliable operation even under high-pressure and high-temperature conditions.

Hydraulic Equal Tee Specifications

STANDARD	DIN 2353/ ISO 8434-1
MATERIAL	MS, CS, SS 304 ,SS 304L , SS 316 ,SS 316L, SS 316TI ( 1.4571) , BRASS , COPPER , DUPLEX , SUPER DUPLEX , INCONEL , MONEL , HASTELLOY , 904L , 6MO, TITANIUM , ALUMNIUM, ALLOY 20
MATERIAL
SERIES	LL- LOW PRESSURE , L- MEDIUM PRESSURE, S- HIGH PRESSURE
WORKING PRESSURE	(LOW) LL SERIES – 100 BAR
	(MEDIUM)L SERIES – 100 BAR TO 500 BAR
	(HEAVY)S SERIES – 200 BAR TO 800 BAR
SIZE RANGE	LL SERIES – 4LL TO 12LL
	L SERIES – 6L TO 42L
	S SERIES – 6S TO 38S
CONNECTIONS	TUBE TO TUBE , TUBE TO MALE THREAD , TUBE TO FEMALE THREAD , TUBE TO BUTT WELD , TUBE TO SOCKET WELD , TUBE TO JIC 37* , TUBE TO 24* CONE, TUBE TO SWIVEL END , TUBE TO ADJUSTBALE STANDPIPE
CONNECTIONS	WELD NIPPLE TO MALE THREAD , WELD NIPPLE TO FEMALE THREAD , WELD NIPPLE TO BUTT WELD , WELD NIPPLE TO SOCKET WELD , WELD NIPPLE TO 24* CONE , WELD NIPPLE TO 37* JIC , WELD NIPPLE TO SWIVEL
BODY TYPE	FORGED, BAR STOCK
SURFACE	CARBON STEEL -TRIVALENT ZINC PLATED , YELLOW PLATTING , BLACK PHOSPHATED,
SURFACE	STAINLESS STEEL – EXPORT BRIGHT FINISH, SHORT BLASTED FINISH, ELECTROPLATED FINISH
TEMPERATURE	STEEL – (-40* C TO 120C) ,STAINLESS STEEL – (-60C TO 400C) BRASS – (-60C TO 175*C)
EQUIVALENT BRANDS	PARKER, HY-LOK , DK-LOK , STAUFF, HYDAC , VOSS
APPLICATIONS & INDUSTRIES	CONSTRUCTION EQUIPMENTS , DRILLING PLATFORMS, HYDRO POWER PLANTS , MACHINE TOOLS , RAILWAY TECHNOLOGY , SHIPBUILDING , WIND TUBRINE , MOBILE HYDRAULIC EQUIPMENT , MINNING , STATIONARY HYDRAULIC EQUIPMENT, INDUSTRIAL HYDRAULICS, INJECTION MOULDING MACHINERY , ALUMINUM DIE-CASTING MACHINERY, SINTERING MACHINERY, STEEL MILLS, HYDRAULIC PRESSES, PAPER PROCESSING MOBILE HYDRAULICS, BUILDING MACHINERY, AGRICULTURAL FORESTRY, LIFTING & MATERIAL HANDLING EQUIPMENT

Top Hydraulic Equal Tee Manufacturing Company in Cairo

Commonly found in industries such as oil and gas, construction, manufacturing, and power generation, hydraulic equal tees play a crucial role in facilitating smooth fluid distribution and branching in hydraulic circuits. They offer leak-proof connections, simplify system design, and make maintenance a breeze. With Gabriel’s hydraulic equal tees, you can expect durable, efficient, and precise performance, ensuring safe and reliable fluid control in critical hydraulic applications.

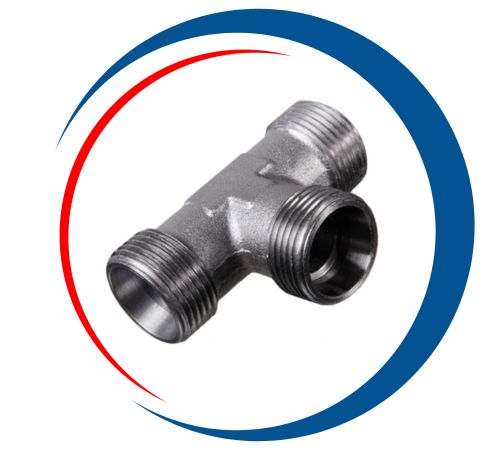

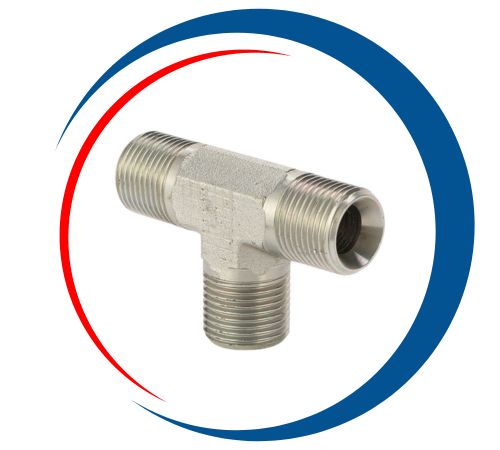

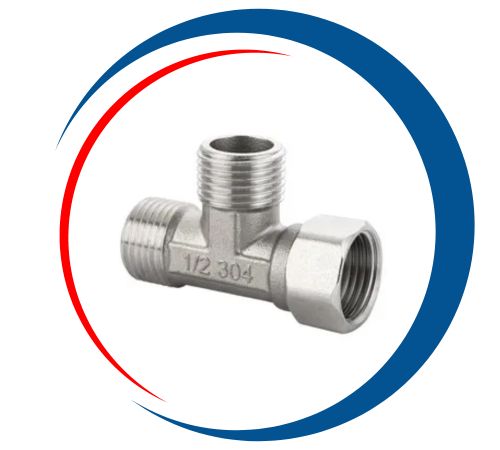

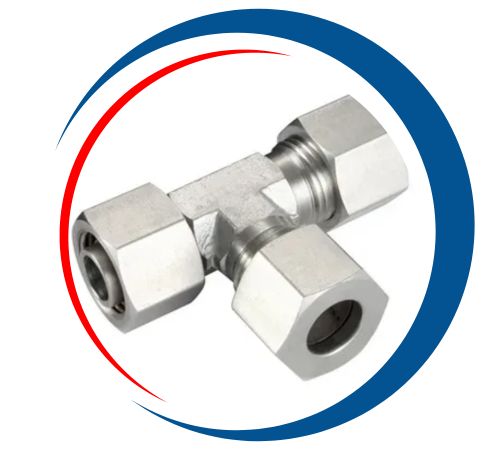

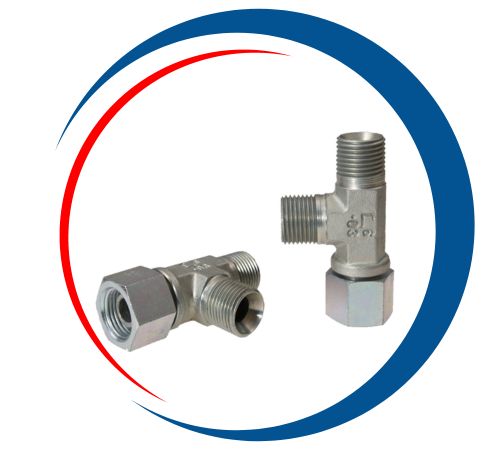

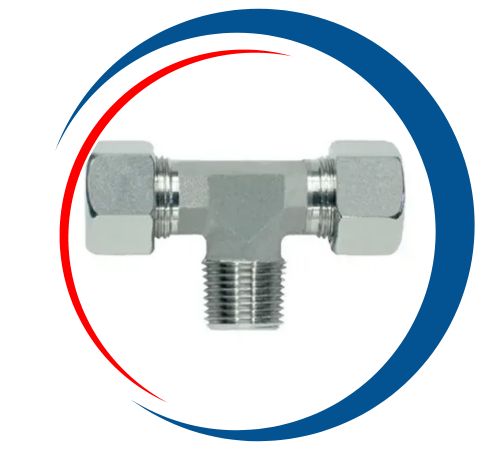

Types of Hydraulic Equal Tee

Dimensions of Hydraulic Equal Tee

Thread	CH	L1	L2	T	Pressure PN	Weight kg 100pcs	Series
Thread F1	mm	mm	mm	mm	bar
12×1,5	12	12	27	6	315	6,3	L
12×1,5	12	12	27	6	315	6,3	L
14×1,5	12	14	29	8	315	8,5	L
14×1,5	12	14	29	8	315	8,5	L
16×1,5	14	15	30	10	315	11,5	L
16×1,5	14	15	30	10	315	11,5	L
18×1,5	17	17	32	12	315	15,0	L
18×1,5	17	17	32	12	315	15,0	L
22×1,5	19	21	36	15	315	24,5	L
22×1,5	19	21	36	15	315	24,5	L
26×1,5	24	23,5	40	18	315	35,8	L
26×1,5	24	23,5	40	18	315	35,8	L
30×2	27	27,5	44	22	160	47,9	L
30×2	27	27,5	44	22	160	47,9	L
36×2	36	30,5	47	28	160	74,5	L
36×2	36	30,5	47	28	160	74,5	L
45×2	41	34,5	56	35	160	100,0	L
45×2	41	34,5	56	35	160	100,0	L
52×2	50	40	63	42	160	150,0	L
52×2	50	40	63	42	160	150,0	L
14×1,5	12	16	31	6	630	11,0	S
14×1,5	12	16	31	6	630	11,0	S
16×1,5	14	17	32	8	630	14,2	S
16×1,5	14	17	32	8	630	14,2	S
18×1,5	17	17,5	34	10	630	19,1	S
18×1,5	17	17,5	34	10	630	19,1	S
20×1,5	17	21,5	38	12	630	24,3	S
20×1,5	17	21,5	38	12	630	24,3	S
22×1,5	19	22	40	14	630	30,2	S
22×1,5	19	22	40	14	630	30,2	S
24×1,5	24	24,5	43	16	400	39,8	S
24×1,5	24	24,5	43	16	400	39,8	S
30×2	27	26,5	48	20	400	60,0	S
30×2	27	26,5	48	20	400	60,0	S
36×2	36	30	54	25	400	112,0	S
36×2	36	30	54	25	400	112,0	S
42×2	41	35,5	62	30	400	146,0	S
42×2	41	35,5	62	30	400	146,0	S
52×2	50	41	72	38	315	206,0	S
52×2	50	41	72	38	315	206,0	S

Hydraulic Equal Tee Assembled & Un Assembled Manufacturer in Alexandria, SS Hydraulic Equal Tee Exporter in Cairo, Hydraulic Reducing Tee Exporter in Port Said, DIN 2353 Hydraulic Tee Supplier in Giza, Hydraulic Equal Tee Assembled & Un Assembled Exporter in Cairo, Hydraulic Reducing Tee Supplier in Cairo, Hydraulic Equal Tee Stockist in Alexandria, Egypt

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Manufacturer and Supplier of Hydraulic Equal Tee in Cairo, Egypt

Gabriel Tube Fittings is a leading supplier and stockist of premium Hydraulic Equal Tee in Cairo, Egypt. Our products are widely utilized across various industries, and we are committed to delivering exceptional service and ensuring high customer satisfaction. Our distinctive finishing techniques set us apart in the metal industry. We are dedicated to consistently providing top-quality products while effectively addressing the needs of our customers.

Hydraulic Equal Tee Uses

Hydraulic Equal Tee are widely used in hydraulic systems to split or disperse flow at a 90-degree angle. They are important in the oil and gas, fuel, automotive, and construction industries to guide flow between pipelines. These tees can effectively distribute or connect fluids, balancing pressure and flow in complex systems. Typical applications include hydraulic engines, energy generation, and water transfer systems, where they contribute to continuous operation, reduce system stress, and improve overall water consumption efficiency in high-pressure environments.
