Incoloy 800 Needle Valve

Home > Incoloy >Incoloy 800 Needle Valve

**Gabriel Tube Fittings**, located in Cairo, Egypt, is a reputable manufacturer and supplier of precision-engineered **Incoloy 800 Needle Valves**. These valves are crafted for precise flow control in high-temperature and corrosive environments. They excel in applications that demand fine regulation of gases or liquids under pressure, particularly where temperature resistance and long-lasting reliability are paramount.

Incoloy 800 Needle Valves Supplier in Cairo, Incoloy 800 Needle Valve Price List in Alexandria, Incoloy 800 Needle Valve Manufacturer in Giza, UNS N08800 Needle Valves in Port Said, DIN 1.4859 Bleed Needle Valves Exporter in Alexandria, Incoloy® Alloy 800 Industrial Needle Valve Manufacturer in Cairo, Incoloy 800 Needle Valve In Cairo, Egypt.

Constructed from **Incoloy 800**, a nickel-iron-chromium alloy, these needle valves provide **outstanding resistance to oxidation, carburization, and high-temperature corrosion**. Incoloy 800 retains its strength and structural integrity at temperatures reaching up to 1100°C (2010°F), making it an excellent choice for **power plants, petrochemical facilities, heat treatment systems, and superheated steam lines**.

Incoloy 800 Needle Valve Specifications

VALVE SIZE	1/8″ TO 2″ / 6 MM TO 50 MM
THREAD	NPT, BSPP, BSPT, JIC, METRIC, UNF
CONNECTION	THREADED, TUBE END, BUTT WELD, SOCKET WELD, FLANGE END
FLOW PATTERN	STRAIGHT, ANGLE, CROSS PATTERNS
FUNCTION	2 WAY, 3 WAY
BODY SHAPE	SQUARE, ROUND, HEXAGON
PRESSURE RATING	1500 PSI, 3000 PSI, 6000 PSI, 10000 PSI, 15,000 PSI, 20000 PSI
ORIFICE SIZE	2 MM TO 9.5 MM
MEDIA	HYDRAULIC OIL, AIR, WATER, GAS, STEAM, HOT WATER , COLD WATER , SEA WATER , CHEMICAL
MEDIA TEMPERATURE	(-120* C TO 500*C ) RANGE AS PER PRESSURE
BODY TYPE	BAR STOCK, FORGED
HANDLE	BAR T-HANDLE,KNOB HANDLE, WHEEL HANDLE
PACKING DETAILS	BOX PACKING, WOODEN PALLET
MATERIAL	INCOLOY 800

Incoloy 800 Needle Valve Chemical Composition

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr	Al	Ti
800	0.10 max	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60	0.15 – 0.60

Incoloy 800 Needle Valve Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
800 / 800H / 800HT	7.94 g/cm3	1385 °C (2525 °F)	Psi – 75,000 , MPa – 520	Psi – 30,000 , MPa – 205	30 %

Top Incoloy 800 Needle Valve Manufacturing Company in Cairo

Gabriel’s **Incoloy 800 needle valves** are designed with a finely threaded stem and a robust sealing mechanism, ensuring precise flow control with leak-tight performance. They come in a variety of sizes, pressure ratings (up to 6000 PSI), and end connections, including **NPT, BSPT, and compression ends**, to meet diverse system needs.

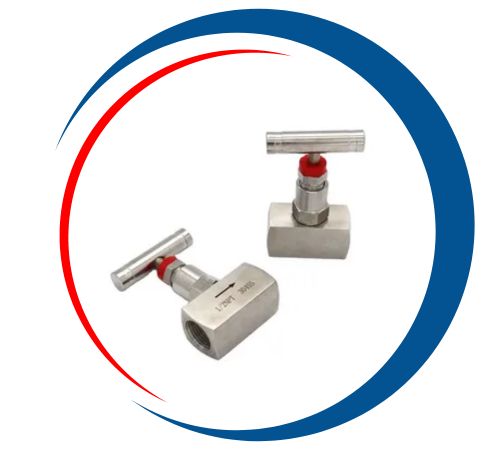

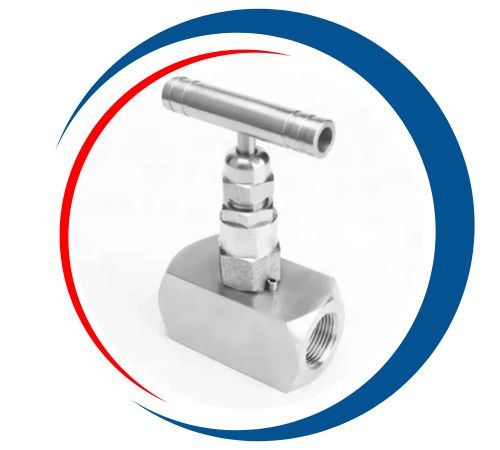

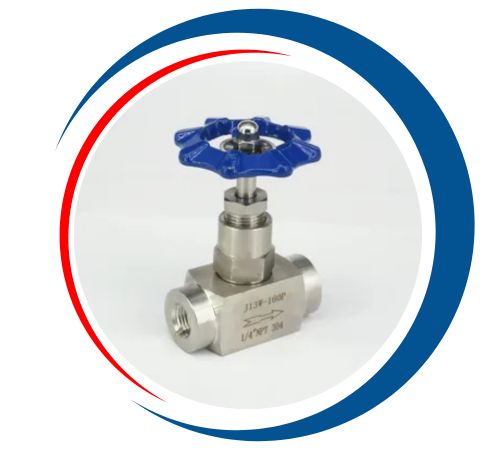

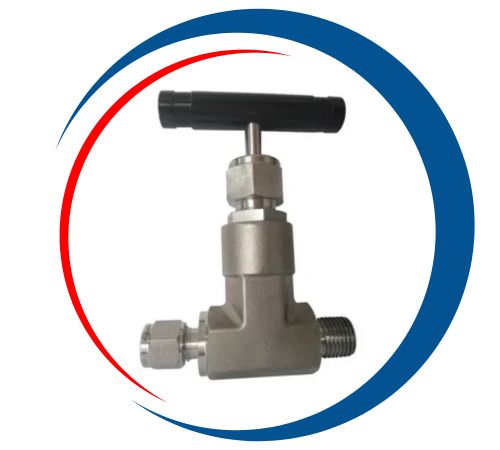

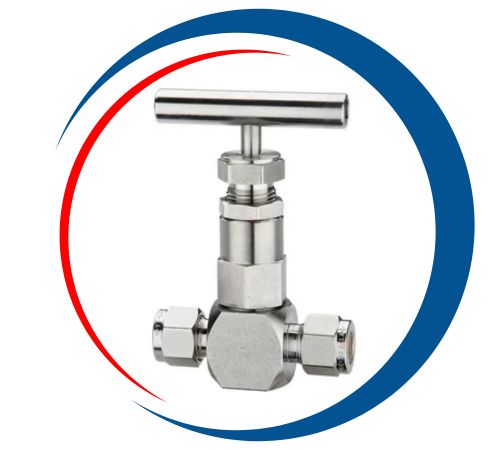

Types of Incoloy 800 Needle Valve

Incoloy 800 Needle Valve Equivalent

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN	OR
Incoloy 800	1.4876	N08800	NCF 800	NA 15	ЭИ670	Z8NC32-21	X10NiCrAlTi32-20	XH32T

Incoloy Gauge Vent Valves Manufacturer in Cairo, Incoloy 800 Parker Needle Valve Exporter in Alexandria, Incoloy® 800 Multiport Valves Supplier in Giza, DIN 1.4859 Screwed End Needle Valve Supplier in Port Said, Incoloy UNS N08800 Hydraulic Needle Valve In Giza, Incoloy Alloy 800 Autoclave Needle Valve In Port Said, Incoloy 800 Parker Needle Valve Price List in Cairo, Incoloy 800 Needle and Gauge Valves Manufacturer in Cairo, Incoloy 800 Needle Valve Exporter in Alexandria, Egypt.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Incoloy 800 Needle Valve Supplier in Cairo, Egypt

Built for durability and smooth operation, these valves are perfect for instrumentation lines, sampling systems, and chemical injection setups where both control and corrosion resistance are crucial. Gabriel adheres to strict quality standards, guaranteeing reliable performance even in the most challenging industrial settings.

Incoloy 800 Needle Valve Uses

Incoloy 800 needle valves are widely used in applications requiring high temperatures and corrosion resistance. Their applications include oil and gas production, chemical processing, and electricity generation, especially in areas exposed to acids and elements These valves are ideal for water flow in high-pressure systems such as heat exchangers and reactors in, because of its strong construction. The nickel-chromium-steel alloy system ensures excellent mechanical properties and oxidation resistance, making Incoloy 800 needle valves suitable for harsh conditions and long life
