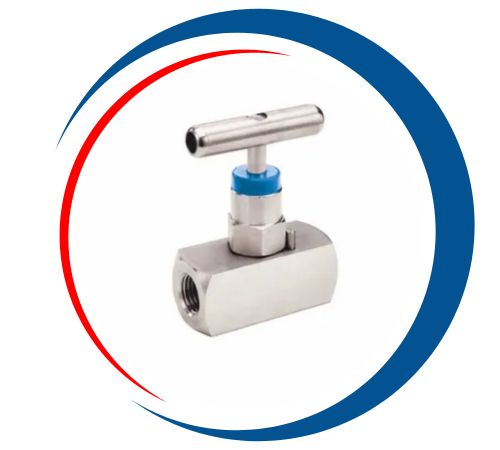

Inconel 718 Needle Valve

Home > Inconel > Inconel 718 Needle Valve

Gabriel Tube Fittings, located in Cairo, Egypt, has earned a solid reputation as a reliable manufacturer and supplier of Inconel 718 Needle Valves. These valves are crafted for exceptional strength, precision, and resistance to corrosion, making them perfect for extreme environments. They’re designed to ensure accurate flow control and dependable shutoff in systems that operate under high pressure and temperature. Gabriel Tube Fittings utilizes cutting-edge manufacturing techniques and rigorous quality checks to guarantee that each Inconel 718 Needle Valve complies with international standards. Their products find applications in various industries, including aerospace, oil and gas, chemical processing, and power generation, where durability and precision are essential for safe and efficient operations.

Inconel 718 Needle Valve Supplier in Cairo, High Pressure Inconel 718 Needle Valve Price List in Alexandria, UNS N07718 Inconel 718 Flow Control Needle Valves Manufacturer in Giza, Inconel 718 Angle Needle Valve in Port Said, 1/4 Inconel 718 Needle Valve Exporter in Alexandria, Alloy Needle Valve Manufacturer in Cairo, Inconel 718 Integral Bonnet Needle Valve In Cairo, Egypt.

Inconel 718 Needle Valves are constructed from a nickel-chromium alloy that includes notable amounts of iron, niobium, and molybdenum, along with smaller quantities of titanium and aluminum. This distinctive blend provides remarkable tensile strength (typically around 965 MPa), excellent resistance to creep and rupture, and outstanding oxidation and corrosion resistance at temperatures up to 700°C. The alloy’s precipitation-hardening properties ensure superior mechanical stability, making it ideal for high-stress, high-temperature applications in harsh environments.

Inconel 718 Needle Valve Specifications

VALVE SIZE	1/8″ TO 2″ / 6 MM TO 50 MM
THREAD	NPT, BSPP, BSPT, JIC, METRIC, UNF
CONNECTION	THREADED, TUBE END, BUTT WELD, SOCKET WELD, FLANGE END
FLOW PATTERN	STRAIGHT, ANGLE, CROSS PATTERNS
FUNCTION	2 WAY, 3 WAY
BODY SHAPE	SQUARE, ROUND, HEXAGON
PRESSURE RATING	1500 PSI, 3000 PSI, 6000 PSI, 10000 PSI, 15,000 PSI, 20000 PSI
ORIFICE SIZE	2 MM TO 9.5 MM
MEDIA	HYDRAULIC OIL, AIR, WATER, GAS, STEAM, HOT WATER , COLD WATER , SEA WATER , CHEMICAL
MEDIA TEMPERATURE	(-120* C TO 500*C ) RANGE AS PER PRESSURE
BODY TYPE	BAR STOCK, FORGED
HANDLE	BAR T-HANDLE,KNOB HANDLE, WHEEL HANDLE
PACKING DETAILS	BOX PACKING, WOODEN PALLET
MATERIAL	INCONEL 718

Inconel 718 Needle Valve Chemical Composition

Ni	Cr	Fe	Mo	Nb+Ta	C	Mn	Si	Ph	S	Ti	Cu	B	Al	Co
Min	50	17	Bal	2.8	4.75	–	–	–	–	–	0.65	–	–	0.20	–
Max	55	21	–	3.3	5.50	0.08	0.035	0.35	0.015	0.015	1.15	0.30	0.0006	0.80	1.00

Inconel 718 Needle Valve Mechanical Properties

0.2% Proof Stress	Tensile Strength	Elongation	Reduction of area	Hardness
MPA	MPA	%	%	HB
Min	Min	Min	Min	Min
1034	1275	12	15	331

Top Inconel 718 Needle Valve Manufacturing Company in Cairo

At Gabriel Tube Fittings, we are the largest supplier, manufacturer, and exporter of Inconel 718 Needle Valve in Cairo, Egypt. Our advanced manufacturing facilities, strategically positioned in the Egypt, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfill your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.

Types of Inconel 718 Needle Valve

Inconel 718 Needle Valve Equivalent

STANDARD	WNR Material Number	UNS	JIS	BS	GOST	AFNOR	EN
718	2.4668	N07718	–	–	–	–	–

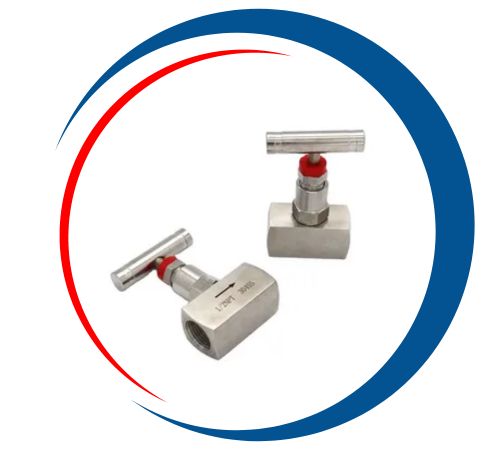

NPT Thread Inconel 718 Needle Valve Manufacturer in Cairo, Inconel 718 Flow Control Needle Valve Exporter in Alexandria, DIN 2.4668 Alloy Needle Valve Supplier in Giza, Instrumentation Inconel 718 Needle Valve Supplier in Port Said, Inconel 718 Flow Control Needle Valve In Giza, Inconel 718 Needle Valve In Port Said, Inconel 718 Integral Bonnet Needle Valve Price List in Cairo, Alloy Needle Valve Manufacturer in Cairo, Inconel 718 Flow Control Needle Valve Exporter in Alexandria, Egypt.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Inconel 718 Needle Valve Supplier in Cairo, Egypt

These valves are commonly used in aerospace systems, petrochemical processing, marine applications, and power plants for the precise regulation of fluids and gases. Their ability to endure extreme temperatures, pressures, and corrosive substances guarantees reliable, long-lasting performance. Inconel 718 Needle Valves are perfect for critical instrumentation and control systems, providing leak-tight sealing, smooth operation, and minimal maintenance, even in the toughest operating conditions.

Inconel 718 Needle Valve Uses

Inconel 718 Needle Valves are widely used in applications requiring high performance in extreme environments. They are ideal for applications in the aerospace industry, where high strength and corrosion resistance are important for fuel, fluid and air systems In the oil and gas industry flows are monitored under high pressure and high temperature conditions, and ensures safety and performance. These valves are also used in chemical plants for handling corrosives, as well as in the power and marine industries, where resistance to oxidation and heat is required.
