Inconel 718 Tube Fittings

Home > Inconel > Inconel 718 Tube Fittings

**Gabriel Tube Fittings**, located in Cairo, Egypt, is a reliable manufacturer and supplier of high-performance **Inconel 718 Tube Fittings**, designed to thrive in extreme conditions involving high pressure, elevated temperatures, and corrosive environments. These fittings are crafted for critical applications that demand secure, leak-proof connections in advanced fluid and gas handling systems.

Inconel 718 Instrumentation Tube Fittings Supplier in Cairo, Inconel 718 Double Ferrule Tube Fittings Price List in Alexandria, UNS N06718 Instrumentation Tube Fittings Manufacturer in Giza, Inconel 718 Single Ferrule Fittings In Port Said, Inconel 718 Ferrule Fittings Exporter in Alexandria, Inconel 718 Instrumentation Fittings Manufacturer in Cairo, Inconel 718 Compression Tube Fittings in Cairo, Egypt.

Constructed from **Inconel 718**, a nickel-chromium alloy enhanced with niobium and molybdenum, these tube fittings deliver **outstanding resistance to oxidation, pitting, crevice corrosion, and chloride-induced stress corrosion cracking**. Inconel 718 also boasts **high tensile strength, fatigue resistance, and excellent weldability**, ensuring mechanical integrity at temperatures reaching up to 700°C (1300°F). This makes it an excellent choice for **aerospace, nuclear power, chemical processing, offshore oil & gas, and high-pressure hydraulic systems**.

Inconel 718 Tube Fittings Specifications

Material Test Certificates (MTC) for Tube Fitting as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175
Specifications	ASTM B366 / ASME SB366
Size	1/16 in. to 2 in. & 2mm to 50 mm.
Dimensional Range	1/16 to 2 inches (imperial); 2 to 50 mm (metric)
Working Pressures	Upto 2000 to 6010 PSI
Thread Type	NPT – ASME B1.20.1, SAE AS71051 \| ISO/BSP Parallel – ISO 228 \| ISO/BSP Tapered – ISO 7, BS EN 10226-1 \| SAE (Unified) – ASME B1.1
End Connections	NPT, ISO/BP, SAE/MS, AN, weld ends, port connectors, sanitary flanges, tube adapters
Types	Tube to Union, Tube to Male, Tube to Female, Instrument Pipe Fittings, Accessories
Equivalent To	SWAGELOK, PARKER, DK-LOK, HOKE
Max Working Pressure	8MPa \| 1200psi Depending on The Tubing Material
Working Temperature	-40°C—250°C \| -40°F—482°F Depending on The Tubing Material
Configurations	Straights, elbows, tees, crosses, caps, plugs, nuts and ferrules Chromatograph and Column End
Tube Fitting uses & application	Compression tube fitting to connect two imperial tubes (or fractional tubes), two metric tubes or, also, the connection of a metric tube at one end and a fractional/imperial tube at the other end in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc Tube Fittings useful for their extreme temperature and pressure capabilities for high/low temperatures applications, and their compatibility with aggressive fluids, compression fittings can be seen in systems varying from gas lines in refineries, plumbing etc.

Inconel 718 Tube Fittings Chemical Composition

Grade	C	Mn	Si	S	Al	Ti	Fe	Ni	Cr
Inconel 718	0.10 max	0.50 max	0.50 max	0.015 max	0.40 max	0.40 max	5.0 max	58.0 min	20.0 – 23.0

Inconel 718 Tube Fittings Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.4 g/cm3	1350 °C (2460 °F)	Psi – 1,35,000 , MPa -930	Psi – 75,000 , MPa – 517	42.5 %

Types of Inconel 718 Tube Fittings

Inconel 718 Tube Fittings Equivalent Grades

STANDARD	UNS	WNR.	AFNOR	EN	JIS	BS	GOST	OR
Inconel 718	N06625	2.4856	NC22DNB4M	NiCr22Mo9Nb	NCF 625	NA 21	ХН75МБТЮ	ЭИ602

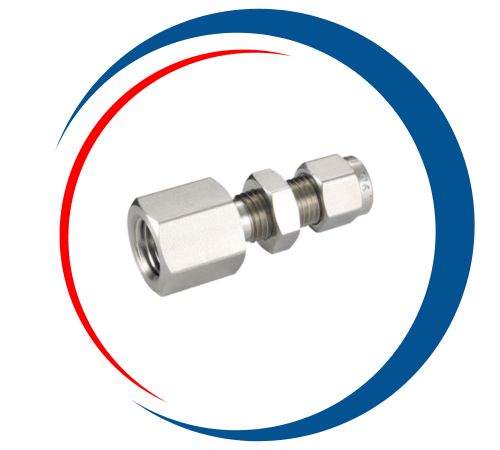

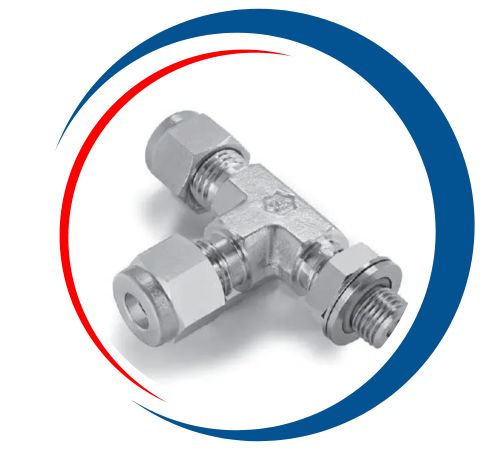

Inconel 718 Instrumentation Tube Fittings Price in Cairo, Inconel 718 Male Branch Tee Supplier in Alexandria, Inconel 718 Bulk Head Female Connector Manufacturer in Giza, Inconel 718 Single Ferrule Tube Fittings Price in Port Said, Inconel 718 Male Run Tee Supplier And Manufacturer in Cairo, Inconel 718 Male Elbow In Cairo, Egypt.

Largest Manufacturer and Supplier of Inconel 718 Tube Fittings in Cairo, Egypt

Gabriel’s **Inconel 718 tube fittings** are precision-engineered to guarantee tight, vibration-resistant seals in both static and dynamic systems. They come in a variety of types—including **unions, elbows, tees, reducers, and connectors**—and are compatible with double ferrule or compression fitting designs, ensuring safe and reliable performance even under the most demanding service conditions.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Inconel 718 Tube Fittings Uses

Inconel 718 Tube Fittings are widely used in applications requiring high strength and corrosion resistance. They are important in aerospace applications, including aircraft engines and gas turbines, where they can withstand high temperatures and pressures. In the oil and gas industry, these materials are used in both horizontal and vertical holes due to their resistance to harsh environmental conditions. In addition, Inconel 718 fittings are used in medical, nuclear reactors and marine applications to ensure reliability and performance in extreme conditions, increasing safety and performance in a variety of applications
