Inconel Tube Fittings

Home > Inconel > Inconel Tube Fittings

Gabriel Tube Fittings is a reputable manufacturer and supplier located in Cairo, Egypt, specializing in high-quality **Inconel Tube Fittings** that are crafted for secure, leak-proof connections in tough industrial and high-temperature settings. These fittings guarantee reliable fluid transfer, outstanding corrosion resistance, and robust mechanical strength, even in harsh environments. Adhering to strict international standards, Gabriel Tube Fittings provides Inconel Tube Fittings that are built to last, ensuring a long service life and precise performance for essential piping and instrumentation systems.

Inconel Instrumentation Tube Fittings Supplier in Cairo, Inconel Double Ferrule Tube Fittings Price List in Alexandria, Nickel Alloy Twin Ferrule Fittings Manufacturer in Giza, Inconel Single Ferrule Fittings In Port Said, Inconel Bulkhead Union, Inconel Ferrule Fittings Exporter in Alexandria, Inconel Instrumentation Fittings Manufacturer in Cairo, Inconel Compression Tube Fittings in Cairo, Egypt.

Inconel Tube Fittings are crafted from nickel-chromium-based superalloys, like Inconel 600 or 625, which contain significant amounts of nickel and chromium, along with molybdenum and iron. This unique blend offers remarkable resistance to oxidation, pitting, and crevice corrosion, especially at high temperatures and in aggressive chemical settings. They boast high tensile strength, excellent toughness, and dependable mechanical performance under high-pressure and high-temperature conditions, ensuring they remain durable and leak-proof over time.

Inconel Tube Fittings Specifications

Material Test Certificates (MTC) for Tube Fitting as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175
Specifications	ASTM B366 / ASME SB366
Size	1/16 in. to 2 in. & 2mm to 50 mm.
Dimensional Range	1/16 to 2 inches (imperial); 2 to 50 mm (metric)
Working Pressures	Upto 2000 to 6000 PSI
Thread Type	NPT – ASME B1.20.1, SAE AS71051 \| ISO/BSP Parallel – ISO 228 \| ISO/BSP Tapered – ISO 7, BS EN 10226-1 \| SAE (Unified) – ASME B1.1
End Connections	NPT, ISO/BP, SAE/MS, AN, weld ends, port connectors, sanitary flanges, tube adapters
Types	Tube to Union, Tube to Male, Tube to Female, Instrument Pipe Fittings, Accessories
Equivalent To	SWAGELOK, PARKER, DK-LOK, HOKE
Max Working Pressure	8MPa \| 1200psi Depending on The Tubing Material
Working Temperature	-40°C—250°C \| -40°F—482°F Depending on The Tubing Material
Configurations	Straights, elbows, tees, crosses, caps, plugs, nuts and ferrules Chromatograph and Column End
Tube Fitting uses & application	Compression tube fitting to connect two imperial tubes (or fractional tubes), two metric tubes or, also, the connection of a metric tube at one end and a fractional/imperial tube at the other end in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc Tube Fittings useful for their extreme temperature and pressure capabilities for high/low temperatures applications, and their compatibility with aggressive fluids, compression fittings can be seen in systems varying from gas lines in refineries, plumbing etc.

Inconel Tube Fittings Chemical Composition

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr
Inconel Tube Fittings	0.15 max	1.00 max	0.50 max	0.015 max	0.50 max	6.00 – 10.00	72.00 min	14.00 – 17.00

Inconel Tube Fittings Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.47 g/cm3	1413 °C (2580 °F)	655 MPa, 95000 psi	310 MPa, 45000 psi	45 %

Types of Inconel Tube Fittings

Inconel Tube Fittings Equivalent Grades

STANDARD	UNS	WNR.	AFNOR	EN	JIS	BS	GOST	OR
Inconel Tube Fittings	N06600	2.4816	NC15FE11M	NiCr15Fe	NCF 600	NA 13	МНЖМц 28-2,5-1,5	ЭИ868

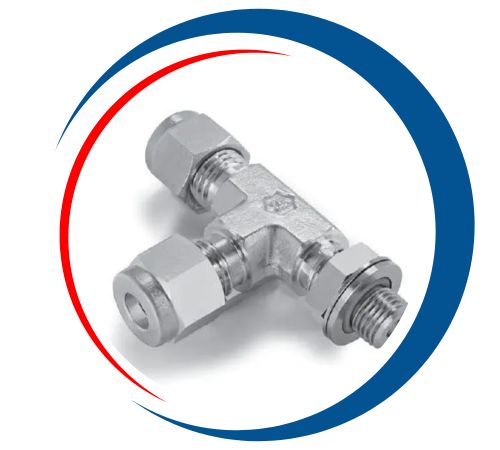

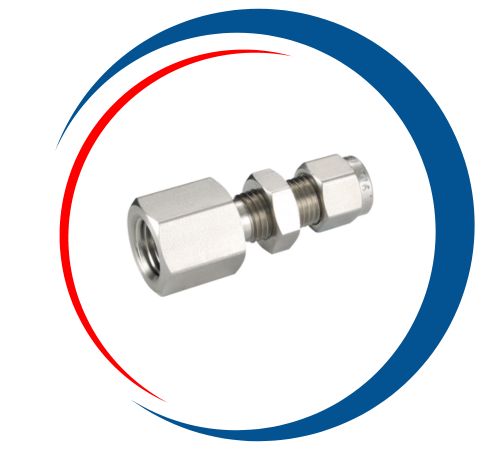

Inconel Bulkhead Union, Inconel Alloy Tube To Union, Inconel Instrumentation Tube Fittings Price in Cairo, Inconel Male Branch Tee Supplier in Alexandria, Inconel Bulk Head Female Connector Manufacturer in Giza, Inconel Single Ferrule Tube Fittings Price in Port Said, Inconel Male Run Tee Supplier And Manufacturer in Cairo, Inconel Male Elbow In Cairo, Egypt.

Largest Manufacturer and Supplier of Inconel Tube Fittings in Cairo, Egypt

These fittings find extensive use in the oil and gas, petrochemical, chemical processing, power generation, and marine sectors. They are perfect for instrumentation lines, high-temperature pipelines, and process systems that demand secure, corrosion-resistant, and long-lasting connections. With their superior mechanical strength, high-temperature resilience, and corrosion protection, Inconel Tube Fittings ensure safe, efficient, and reliable operation in challenging industrial applications.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Inconel Tube Fittings Uses

Inconel Tube Fittings are extensively used in various industries where high strength and corrosion resistance are essential. In aerospace, they are crucial for jet engines and gas turbines, handling extreme temperatures and pressures. In the oil and gas sector, these fittings are employed in both upstream and downstream applications, including offshore drilling and refining processes, due to their ability to withstand harsh environments. Additionally, Inconel Tube Fittings are utilized in chemical processing plants for transporting corrosive fluids, ensuring reliability and safety in demanding applications. Their versatility makes them a trusted choice across multiple sectors.
