Monel K500 Tube Fittings

Home > Monel > Monel K500 Tube Fittings

Gabriel Tube Fittings is a reputable manufacturer and supplier located in Cairo, Egypt, specializing in high-quality **Monel K500 Tube Fittings** that ensure secure, leak-proof connections in critical industrial and marine applications. These fittings are known for their outstanding corrosion resistance, mechanical strength, and long-lasting durability, making them reliable even in the toughest environments. Crafted to meet stringent international standards, Gabriel Tube Fittings provides Monel K500 Tube Fittings that cater to the demands of high-pressure, high-temperature, and aggressive applications across various industries.

Monel K500 Tube Fittings Supplier in Cairo, Monel K500 Male Branch Tee Price List in Alexandria, Monel K500 Female Connector Manufacturer in Giza, Monel K500 Union Cross In Port Said, Monel K500 Industrial Instrumentation Tube Fittings Exporter in Alexandria, Monel Alloy 2.4375 Bulk Head Union Manufacturer in Cairo, Alloy K500 Double Ferrule Tube Fittings In Cairo, Egypt.

Monel K500 Tube Fittings are composed of a nickel-copper alloy, which includes about 63–70% nickel and 28–34% copper, along with trace amounts of iron, aluminum, and titanium. The alloy’s precipitation-hardening elements, namely aluminum and titanium, boost its mechanical strength, resulting in a tensile strength of around 830–930 MPa, along with excellent toughness and resistance to seawater, acidic and alkaline solutions, and oxidizing agents. These characteristics make Monel K500 Tube Fittings incredibly dependable under extreme conditions.

Monel K500 Tube Fittings Specifications

Dimensions : DIN, ASTM, ASME, BS and all International Standards

Specifications : ASTM B366 / ASME SB 366

Grade : Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500)

Size Range : 1/8” to 2” and 2mm to 32mm tube diameter

Working Pressure : up to 6,000psi (based on severity of application)

Available Thread : NPT(ANSI B1.20.1), and ISO thread configurations (BSPT, BSPP)

Monel K500 Tube Fittings Chemical Composition

Grade	C	Mn	Si	Cu	Fe	Ni	S
K500	0.25 max	1.5 max	0.5 max	27.00 – 33.00	0.5 – 2	63.00 min	0.010 max

Monel K500 Tube Fittings Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.44 g/cm3	1350 °C (2460 °F)	Psi – 1,60,000 , MPa – 1100	Psi – 1,15000 , MPa – 790	20%

Types of Monel K500 Tube Fittings

Equivalent Grades of Monel K500 Tube Fittings

STANDARD	WERKSTOFF NR.	UNS	JIS	AFNOR	BS	GOST	EN
Monel K500	2.4375	N05500	–	–	–	–	–

Various Basic Form Of Alloy K500 Tube Fittings

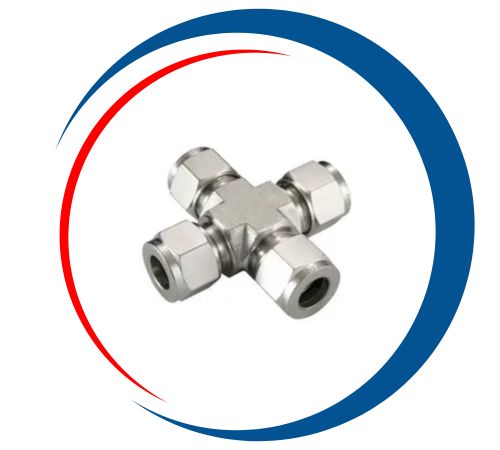

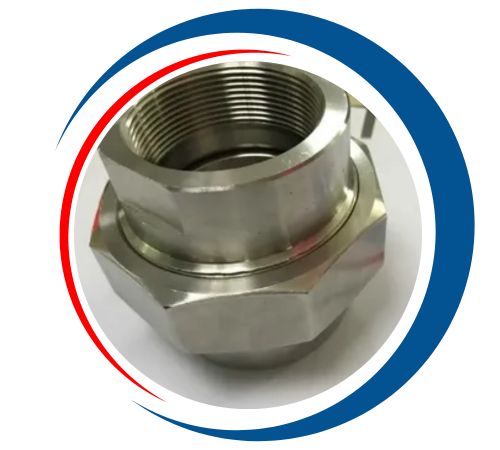

Bulkhead Union	Straight Union	Reducing Union	Union Elbow	Union Cross	Union Tee

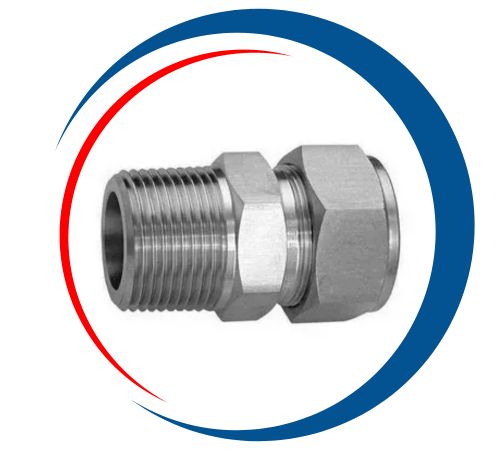

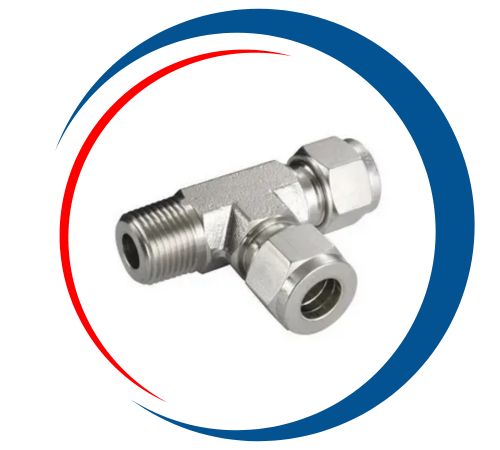

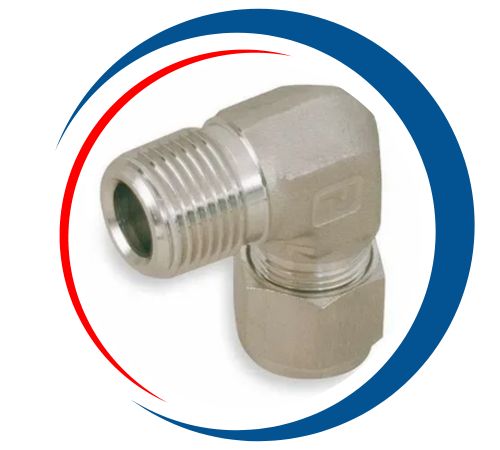

Female Connector	Male Connector	Male Bulkhead Connector	Female Bulkhead Connector	Male to Male Elbow	Male Elbow
Male to Female Elbow	Female Elbow	Male Run Tee	Male Branch Tee	Female Branch Tee	Female Run Tee
Female Adaptor	Male Adaptor	Tube End Reducer	OD Plug	Bulkhead Lock Nut	OD Cap

Alloy K500 Double Ferrule Tube Fittings Price in Cairo, K500 Monel Bulk Head Male Connector Supplier in Alexandria, Monel K500 Compression Tube Fittings Manufacturer in Giza, Monel Alloy N05500 Female Run Tee Price in Port Said, Monel UNS N05500 Instrumentation Tube Fittings Supplier And Manufacturer in Cairo, Alloy K500 Single Ferrule Tube Fittings In Cairo, Egypt.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Manufacturer and Supplier of Monel K500 Tube Fittings in Cairo, Egypt

These fittings find extensive use in the oil and gas, petrochemical, chemical processing, marine engineering, and desalination sectors. They are perfect for tubing systems that deal with seawater, brine, acids, and other corrosive fluids, ensuring leak-proof and robust connections. With their exceptional corrosion resistance, mechanical strength, and precision engineering, Monel K500 Tube Fittings guarantee safe, efficient, and long-lasting performance in demanding industrial settings.

Monel K500 Tube Fittings Uses

Monel K500 tube fittings are widely used in industries that demand excellent corrosion resistance, high strength, and durability. These include marine, chemical processing, and oil & gas sectors, where they are employed in piping systems, heat exchangers, and valves. Their resistance to seawater, acidic environments, and high temperatures makes them ideal for offshore platforms, pumps, and seawater systems. Additionally, in aerospace, Monel K500 tube fittings are used for their high strength and resistance to stress corrosion cracking, ensuring reliability in harsh environments.
